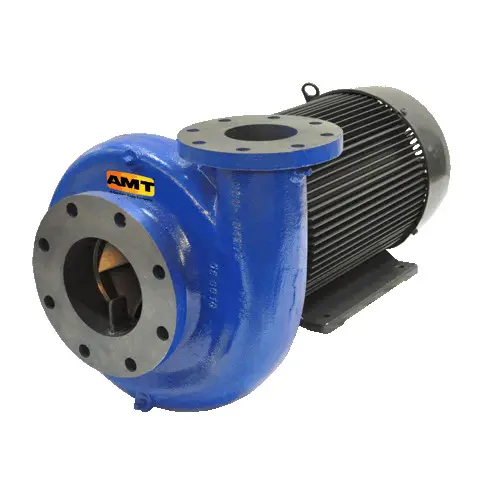

AMT 4301-95 4" x 6" NPT 1750 RPM Cast Iron Straight Centrifugal Pump, W/ 30 HP TEFC

Part Number: 4301-95
The actual product may vary from images shown
$8,453.25
QTY:


4301-95 DETAILS

AMT 4301-95 4" x 6" NPT 1750 RPM Cast Iron Straight Centrifugal Pump, W/ 30 HP TEFC

The AMT Cast Iron 1750 RPM Solids Handling End Suction Centrifugal pump delivers high efficiency performance that minimizes operation and energy costs. Built to last, each pump features a precision cast bronze impeller that is dynamically balanced to minimize vibration and maximize motor bearing life. Pull-from-rear design simplifies maintenance without disturbing piping connection. Gauge taps at the suction and discharge ports allow for system monitoring. Maximum 1/4″ diameter solids handling and optional seal flush/air relief valve is available for vertical installations. Pumps require a flooded suction and positive suction pressure.

Discharge Size / Connection: 4" FNPT
Suction Size / Connection: 6" FNPT
Main Construction Materials: Cast Iron
Solids Handling (In): 0.25
Seal: Viton®/SIL/CAR
Horsepower: 30Type: TEFC
Frame286JM
Phase: 3
VAC/60 Hz: 208-230/460
Full Load Amps: 80/36


Replaces No Longer Sold AMT 430A-95

4301-95 FEATURES
  • Cast Iron Construction
  • Silicon Bronze Precision Cast Dynamically Balanced Impeller
  • Viton® Silicon Carbide/Carbon Mechanical Seal
  • Bronze Case Wear Ring
  • 6" x 4" 125 Lb. 8-Bolt Flanged Suction Port & 4-Bolt Flanged Discharge Port
  • Pull-From-Rear Design Permits Easy Servicing Without Disturbing Piping
  • 1/4" NPT Gauge Taps on Suction & Discharge Ports For System Monitoring
  • Bronze Shaft Sleeve to Protect Motor Shaft
  • Maximum Casing Pressure 175 PSI
  • Maximum Temperature 200° F
  • Includes Seal Flush/Air Relief Valve
  • Front Drain Plugs
  • TEFC JM NEMA Frame IE2/EPAC Energy Efficient Motors

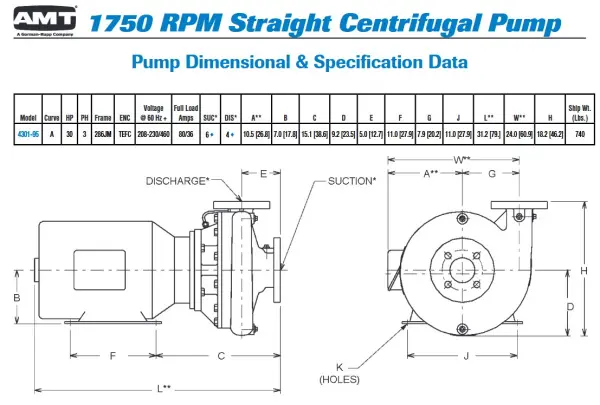

4301-95 SPECS

  • Pump Type:
  • Brand: AMT®
  • Shipping Weight LBS: 540.00
  • Shipping Length IN: 31.20
  • Main Material: Cast Iron
  • Displacement per Stroke (gal):
  • Shipping Height IN: 18.20
  • Engine Type:
  • SKU: AT430195SP
  • MPN: 4301-95
  • Full Load Current: 80/36
  • Fuel Tank Capacity:
  • Customs Code:
  • Driver Type:
  • Shipping Width IN: 24.00
  • Outlet Size: 4
  • Inlet Size: 6
  • Elastomers:
  • Model #:
  • Motor Frame: 286JM
  • Outlet Connection Type: FNPT
  • Porting Position:
  • Inlet Connection Type: FNPT
  • Max Solids Size: 0.25
  • Run Time:
  • Max FLow Rate:
  • Power: 30
  • RPM:
  • Seal Material:
  • Max Discharge Pressure:
