Home / Warren Rupp® Sandpiper® Pumps / Sandpiper® T1FB1SDSWTS600. T1F Top Discharge Metallic Ball Valve Pump

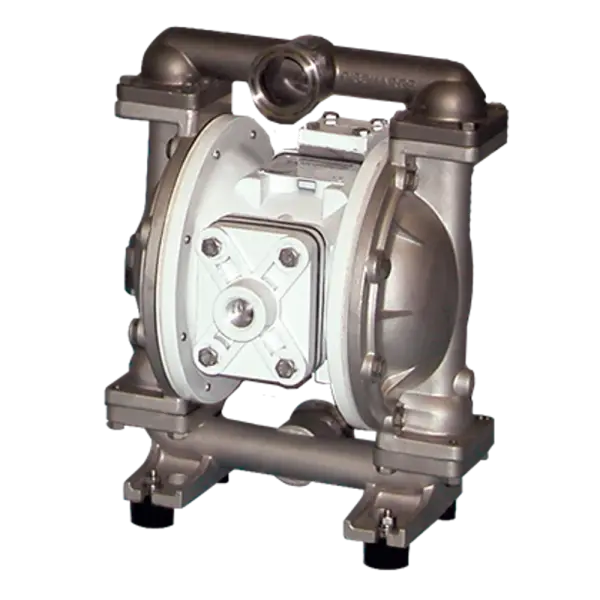

Sandpiper® T1FB1SDSWTS600. T1F Top Discharge Metallic Ball Valve Pump

Part Number: T1FB1SDSWTS600.
The actual product may vary from images shown
$3,645.00
QTY:


T1FB1SDSWTS600. DETAILS

Sandpiper® T1FB1SDSWTS600. 1 1/2" Tri-Clamp T1F Top Discharge Metallic Ball Valve Pump

FDA Material Compliant Pumps are ideally suited for a variety of food processing, pharmaceutical and cosmetic industry applications. These special duty pumps are constructed of FDA material compliant components of Stainless Steel and a selection of FDA Santoprene, FDA Nitrile and PTFE diaphragms, check valves and valve seats.

Recommended Accessories and Kits Sold Separately:

  • Sandpiper® 476.228.000 Air End Kit
  • Sandpiper® 476.194.351 Wet End Kit
  • Contact Us for Other Options and Accessories

T1FB1SDSWTS600. SPECS

  • Pump Type: Warren Rupp® Sandpiper® Pumps
  • Brand: SANDPIPER®
  • Wetted Material: Stainless Steel
  • Non-Wetted Material: WE Aluminum
  • Main Material:
  • Air Inlet Size: 0
  • Check Valve Seat: Ball Valve
  • Check Valve Type: Ball
  • Diaphragm Material: FG Santoprene
  • Porting Position:
  • Air Inlet Connection Type:
  • Displacement per Stroke (gal): 0.11
  • Ball Material:
  • Elastomers: FG Santoprene
  • Inlet Size: 1
  • Inlet Connection Type: Sanitary Clamp
  • Max Air Inlet Pressure: 125
  • Max FLow Rate: 45 GPM
  • Max Solids Size: 0.25
  • Outlet Size: 1
  • Outlet Connection Type: Sanitary Clamp
  • Manifold Gasket:
  • Shipping Weight LBS: 43.00
  • Shipping Length IN: 12.50
  • Shipping Width IN: 10.25
  • Shipping Height IN: 13.31
  • Max Viscosity:
  • SKU: WRT1FB1SDSWTS600SP
  • MPN: T1FB1SDSWTS600.
  • Customs Code: HTS Code 8413.50.00.50
    Schedule B Code 8413.50.00.50
    HS Code 84131900
    ECCN Code EAR99
  • Seal Material:

TECHNICAL DOCUMENTS

For domestic purchase only. Not for export.
