Home / Warren Rupp® Sandpiper® Pumps / Sandpiper® ST25,DVG5SS. ST1 & ST25 Side Discharge Containment Duty Ball Valve Pump

Sandpiper® ST25,DVG5SS. ST1 & ST25 Side Discharge Containment Duty Ball Valve Pump

Part Number: ST25,DVG5SS.
The actual product may vary from images shown
$7,440.00
QTY:


ST25,DVG5SS. DETAILS

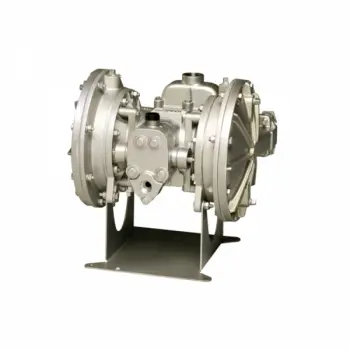

Sandpiper® ST25,DVG5SS. 1" BSP ST1 & ST25 Side Discharge Containment Duty Ball Valve Pump

Containment Duty Metallic Pumps are ideal for highly corrosive and hazardous chemical fluid requirements. All containment chambers are designed to accommodate visual, mechanical and low voltage leak detection devices.

Recommended Accessories and Kits Sold Separately:

  • Contact Us for Wet End Kit Information
  • Contact Us for Air End Kit Information

ST25,DVG5SS. SPECS

  • Pump Type: ST1-A / ST25-A Containment Duty Pump
  • Brand: SANDPIPER®
  • Wetted Material: Stainless Steel
  • Non-Wetted Material: Aluminum
  • Main Material:
  • Air Inlet Size: 0
  • Check Valve Seat: Ball Valve
  • Check Valve Type: Ball
  • Diaphragm Material: PTFE Pumping, FKM-Viton Driver
  • Porting Position:
  • Air Inlet Connection Type:
  • Displacement per Stroke (gal): 0.09
  • Ball Material:
  • Elastomers: PTFE
  • Inlet Size: 1
  • Inlet Connection Type: BSP Tapered
  • Max Air Inlet Pressure: 125
  • Max FLow Rate: 42 GPM
  • Max Solids Size: 0.25
  • Outlet Size: 1
  • Outlet Connection Type: BSP Tapered
  • Manifold Gasket:
  • Shipping Weight LBS: 67.00
  • Shipping Length IN: 14.60
  • Shipping Width IN: 14.26
  • Shipping Height IN: 15.50
  • Max Viscosity:
  • SKU: WRST25DVG5SSSP
  • MPN: ST25,DVG5SS.
  • Customs Code: HTS Code 8413.50.00.50
    Schedule B Code 8413.50.00.50
    HS Code 84131900
    ECCN Code EAR99
  • Seal Material:

TECHNICAL DOCUMENTS

For domestic purchase only. Not for export.
