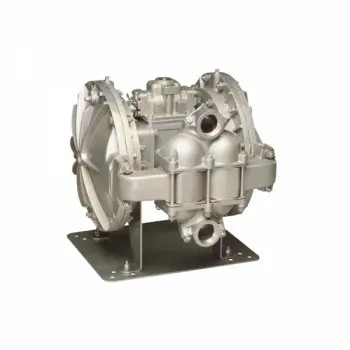

Sandpiper® ST1 1/2,SGN5SI. ST1-1/2 / ST40 Metallic Side Discharge Containment Duty Pump

Part Number: ST1 1/2,SGN5SI.
The actual product may vary from images shown
$12,470.00
QTY:


ST1 1/2,SGN5SI. DETAILS

Sandpiper® ST1 1/2,SGN5SI. ST1-1/2 / ST40 Metallic Side Discharge Containment Duty Pump

Containment Duty Metallic and Non-Metallic Pumps are ideal for highly corrosive and hazardous chemical fluid requirements. All containment duty pumps are exclusively designed with containment chambers, hydraulically balanced/coupled pumping diaphragm and driver diaphragm assemblies. All containment chambers are designed to accommodate visual, mechanical and low voltage leak detection devices. CD pumps are constructed of Aluminum, Cast Iron, Stainless Steel, Alloy C, Polypropylene and PVDF with TPE (thermal plastic elastomers), PTFE options in diaphragms and check valves.

Recommended Accessories and Kits Sold Separately:

  • Sandpiper® 476.371.635 Wet End Kit
  • Sandpiper® 476.370.000 Air End Kit

ST1 1/2,SGN5SI. SPECS

  • Pump Type: ST1 1/2-A/ST40-A Containment Duty Pump
  • Brand: SANDPIPER®
  • Wetted Material: Stainless Steel
  • Non-Wetted Material: Cast Iron
  • Main Material:
  • Air Inlet Size: 0
  • Check Valve Seat: Stainless Steel
  • Check Valve Type: Ball
  • Diaphragm Material: PTFE Pumping, Neoprene Driver
  • Porting Position: Side Discharge
  • Air Inlet Connection Type:
  • Displacement per Stroke (gal): 0.37
  • Ball Material:
  • Elastomers: PTFE
  • Inlet Size: 1.5
  • Inlet Connection Type: NPT
  • Max Air Inlet Pressure: 125
  • Max FLow Rate: 106 GPM
  • Max Solids Size: 0.25
  • Outlet Size: 1.5
  • Outlet Connection Type: NPT
  • Manifold Gasket:
  • Shipping Weight LBS: 212.00
  • Shipping Length IN: 18.68
  • Shipping Width IN: 16.63
  • Shipping Height IN: 17.04
  • Max Viscosity:
  • SKU: WRST112SGN5SISP
  • MPN: ST1 1/2,SGN5SI.
  • Customs Code: HTS Code 8413.50.00.50
    Schedule B Code 8413.50.00.50
    HS Code 84131900
  • Seal Material:
For domestic purchase only. Not for export.
