Sandpiper® SSB2,TD3SS. SSB2-A Top Discharge Ball Valve Sanitary Pump

Part Number: SSB2,TD3SS.
The actual product may vary from images shown
$17,610.00
QTY:


SSB2,TD3SS. DETAILS

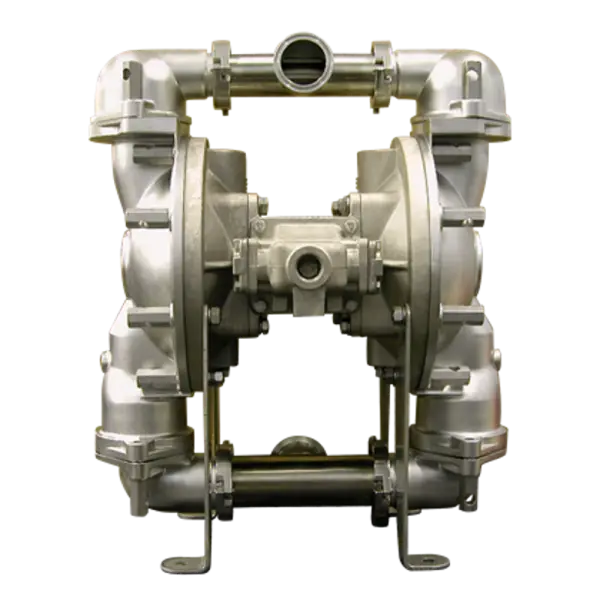

Sandpiper® SSB2,TD3SS. 2 1/2" Sanitary Process Clamp Fitting SSB2-A Top Discharge Ball Valve Sanitary Pump

Designed to meet USDA Standards. Wetted parts of these pumps are electro-polished 316 and 302/304 Stainless Steel.

Recommended Accessories and Kits Sold Separately:

  • Sandpiper® 476.247.000 Air End Kit
  • Sandpiper® 476.069.351 Wet End Kit
  • Contact Us for Other Options and Accessories

SSB2,TD3SS. SPECS

  • Pump Type: S-Series Premium FDA Compliant Pumps
  • Brand: SANDPIPER®
  • Wetted Material: EP Stainless Steel
  • Non-Wetted Material: Polypropylene/NP Aluminum
  • Main Material:
  • Air Inlet Size: 0
  • Check Valve Seat: Flap Valve
  • Check Valve Type: Ball
  • Diaphragm Material: FDA Santoprene
  • Porting Position:
  • Air Inlet Connection Type:
  • Displacement per Stroke (gal): 0.36
  • Ball Material:
  • Elastomers: FG Santoprene
  • Inlet Size: 2
  • Inlet Connection Type: Sanitary Clamp
  • Max Air Inlet Pressure: 125
  • Max FLow Rate: 125 GPM
  • Max Solids Size: 0.25
  • Outlet Size: 2
  • Outlet Connection Type: Sanitary Clamp
  • Manifold Gasket:
  • Shipping Weight LBS: 120.00
  • Shipping Length IN: 18.88
  • Shipping Width IN: 12.81
  • Shipping Height IN: 22.63
  • Max Viscosity:
  • SKU: WRSSB2TD3SSSP
  • MPN: SSB2,TD3SS.
  • Customs Code: HTS Code 8413.50.00.50
    Schedule B Code 8413.50.00.50
    HS Code 84131900
    ECCN Code EAR99
  • Seal Material:

TECHNICAL DOCUMENTS
