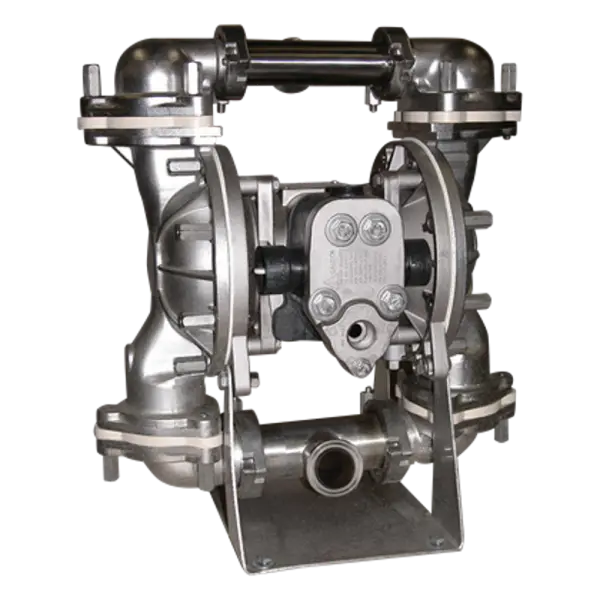

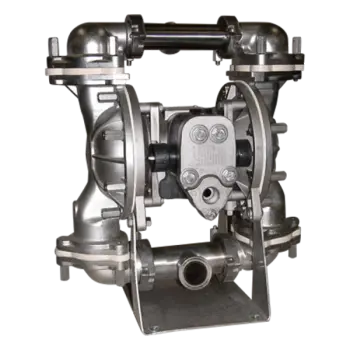

Sandpiper® SSB1,TY4SS. SSB1-A Top Discharge Ball Valve Sanitary Pump

Part Number: SSB1,TY4SS.
The actual product may vary from images shown
$13,560.00
QTY:


SSB1,TY4SS. DETAILS

Sandpiper® SSB1,TY4SS. 1 1/2" Sanitary Process Clamp Fitting SSB1-A Top Discharge Ball Valve Sanitary Pump

Designed to meet USDA Standards. Wetted parts of these pumps are electro-polished 316 and 302/304 Stainless Steel.

Recommended Accessories and Kits Sold Separately:

  • Sandpiper® 476.103.000 Air End Kit
  • Sandpiper® 476.057.368 Wet End Kit
  • Contact Us for Other Options and Accessories

SSB1,TY4SS. SPECS

  • Pump Type: S-Series Premium FDA Compliant Pumps
  • Brand: SANDPIPER®
  • Wetted Material: EP Stainless Steel
  • Non-Wetted Material: Polypropylene/NP Aluminum
  • Main Material:
  • Air Inlet Size: 0
  • Check Valve Seat: Ball Valve
  • Check Valve Type: Ball
  • Diaphragm Material: FDA EPDM
  • Porting Position:
  • Air Inlet Connection Type:
  • Displacement per Stroke (gal): 0.09
  • Ball Material:
  • Elastomers: FG EPDM
  • Inlet Size: 1
  • Inlet Connection Type: Sanitary Clamp
  • Max Air Inlet Pressure: 125
  • Max FLow Rate: 54 GPM
  • Max Solids Size: 0.25
  • Outlet Size: 1
  • Outlet Connection Type: Sanitary Clamp
  • Manifold Gasket:
  • Shipping Weight LBS: 60.00
  • Shipping Length IN: 15.68
  • Shipping Width IN: 11.12
  • Shipping Height IN: 17.50
  • Max Viscosity:
  • SKU: WRSSB1TY4SSSP
  • MPN: SSB1,TY4SS.
  • Customs Code: HTS Code 8413.50.00.50
    Schedule B Code 8413.50.00.50
    HS Code 84131900
    ECCN Code EAR99
  • Seal Material:
