Sandpiper® SH2M,DV7I. SH2-M Bottom Discharge Metallic Flap Valve Pump

Part Number: SH2M,DV7I.
The actual product may vary from images shown
$8,275.00
QTY:


SH2M,DV7I. DETAILS

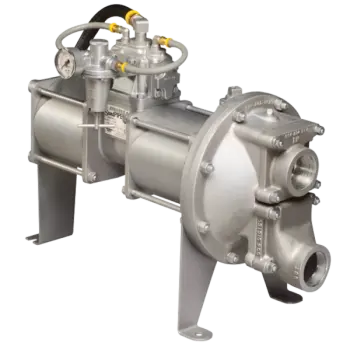

Sandpiper® SH2M,DV7I. 2" NPT SH2-M Bottom Discharge Metallic Flap Valve Pump

Air-operated single diaphragm high pressure metallic pumps deliver discharge pressure twice the inlet pressure, up to 250 PSI (17 BAR). Designed for filter press feed and applications requiring higher discharge pressures.

Recommended Accessories and Kits Sold Separately:

  • Sandpiper® 476.247.000 Air End Kit
  • Sandpiper® 476.055.363 Wet End Kit
  • Contact Us for Other Options and Accessories

SH2M,DV7I. SPECS

  • Pump Type: Warren Rupp® Sandpiper® Pumps
  • Brand: SANDPIPER®
  • Wetted Material: Cast Iron
  • Non-Wetted Material: Cast Iron
  • Main Material:
  • Air Inlet Size: 0
  • Check Valve Seat: Flap Valve
  • Check Valve Type: Flap
  • Diaphragm Material: FKM - Viton
  • Porting Position:
  • Air Inlet Connection Type:
  • Displacement per Stroke (gal): 0.50
  • Ball Material:
  • Elastomers: FKM - Viton
  • Inlet Size: 2
  • Inlet Connection Type: NPT
  • Max Air Inlet Pressure: 125
  • Max FLow Rate: 120 GPM
  • Max Solids Size: 1.8
  • Outlet Size: 2
  • Outlet Connection Type: NPT
  • Manifold Gasket:
  • Shipping Weight LBS: 155.00
  • Shipping Length IN: 26.79
  • Shipping Width IN: 12.19
  • Shipping Height IN: 19.03
  • Max Viscosity:
  • SKU: WRSH2MDV7ISP
  • MPN: SH2M,DV7I.
  • Customs Code: HTS Code 8413.50.00.50
    Schedule B Code 8413.50.00.50
    ECCN Code EAR99
  • Seal Material:
