Home / Warren Rupp® Sandpiper® Pumps / Sandpiper® S30B3P2P1AS000. S30 Non-Metallic Top Discharge Standard Duty Ball Valve Pump

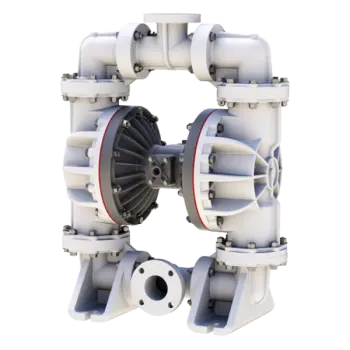

Sandpiper® S30B3P2P1AS000. S30 Non-Metallic Top Discharge Standard Duty Ball Valve Pump

Part Number: S30B3P2P1AS000.
The actual product may vary from images shown
$15,905.00
QTY:


S30B3P2P1AS000. DETAILS

Sandpiper® S30B3P2P1AS000. S30 Non-Metallic Top Discharge Standard Duty Ball Valve Pump

The new S30 Non-Metallic Standard Duty Ball Valve Pump is the best choice forbulk chemical transfer applications:

Recommended Accessories and Kits Sold Separately:

  • Contact Us for Wet End Kit Information
  • Contact Us for Air End Kit Information

S30B3P2P1AS000. SPECS

  • Pump Type: S30 Non-Metallic Ball Valve Diaphragm Pump
  • Brand: SANDPIPER®
  • Wetted Material: Polypropylene
  • Non-Wetted Material: Polypropylene with PTFE Coated Hardware
  • Main Material:
  • Air Inlet Size: 0
  • Check Valve Seat: Polypropylene
  • Check Valve Type: Ball
  • Diaphragm Material: PTFE - Santroprene Backup
  • Porting Position: Top Discharge
  • Air Inlet Connection Type:
  • Displacement per Stroke (gal): 1.00
  • Ball Material:
  • Elastomers: PTFE
  • Inlet Size: 3
  • Inlet Connection Type: ANSI 125# Flange
  • Max Air Inlet Pressure: 100
  • Max FLow Rate: 280 GPM
  • Max Solids Size: 0.75
  • Outlet Size: 3
  • Outlet Connection Type: ANSI 125# Flange
  • Manifold Gasket:
  • Shipping Weight LBS: 208.00
  • Shipping Length IN: 32.31
  • Shipping Width IN: 16.19
  • Shipping Height IN: 40.66
  • Max Viscosity:
  • SKU: WRS30B3P2P1AS000SP
  • MPN: S30B3P2P1AS000.
  • Customs Code: HTS Code 8413.50.00.50
    Schedule B Code 8413.50.00.50
    HS Code 84131900
  • Seal Material:

For domestic purchase only. Not for export.
