Home / Warren Rupp® Sandpiper® Pumps / Sandpiper® S20B3P6PPUV000. S20 Top Discharge Containment Duty Ball Valve Pump

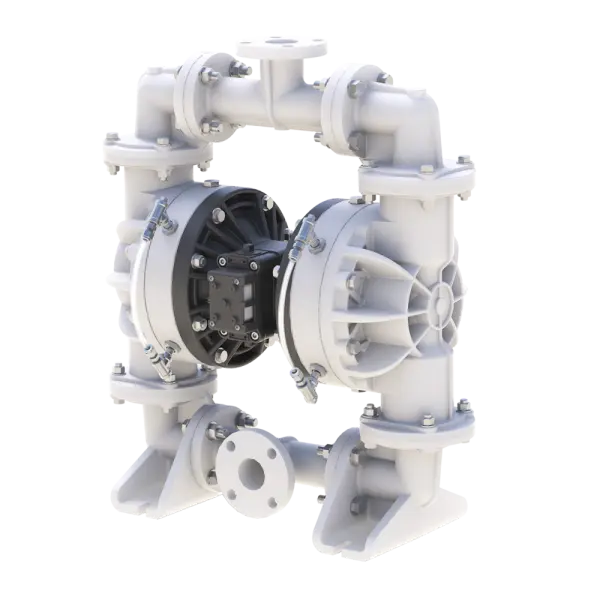

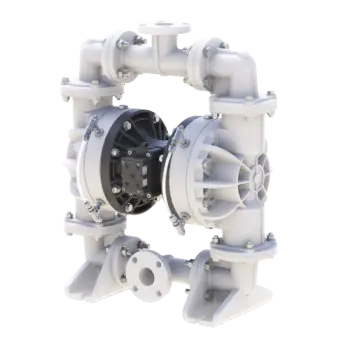

Sandpiper® S20B3P6PPUV000. S20 Top Discharge Containment Duty Ball Valve Pump

Part Number: S20B3P6PPUV000.
The actual product may vary from images shown
$12,330.00
QTY:


S20B3P6PPUV000. DETAILS

Sandpiper® S20B3P6PPUV000. 2" ANSI S20 Top Discharge Containment Duty Ball Valve Pump

Containment Duty Non-Metallic Pumps are ideal for highly corrosive and hazardous chemical fluid requirements. All containment chambers are designed to accommodate visual, mechanical and low voltage leak detection devices.

Recommended Accessories and Kits Sold Separately:

  • Sandpiper® 476.253.000 Air End Kit
  • Sandpiper® 476.258.640 Wet End Kit
  • Contact Us for Other Options and Accessories

S20B3P6PPUV000. SPECS

  • Pump Type: Warren Rupp® Sandpiper® Pumps
  • Brand: SANDPIPER®
  • Wetted Material: Polypropylene
  • Non-Wetted Material: Polypropylene
  • Main Material:
  • Air Inlet Size: 0
  • Check Valve Seat: Ball Valve
  • Check Valve Type: Ball
  • Diaphragm Material: PTFE-PTFE/Neop
  • Porting Position:
  • Air Inlet Connection Type:
  • Displacement per Stroke (gal): 0.46
  • Ball Material:
  • Elastomers: PTFE
  • Inlet Size: 2
  • Inlet Connection Type: ANSI/DIN 125# Flange
  • Max Air Inlet Pressure: 100
  • Max FLow Rate: 160 GPM
  • Max Solids Size: 0.66
  • Outlet Size: 2
  • Outlet Connection Type: ANSI/DIN 125# Flange
  • Manifold Gasket:
  • Shipping Weight LBS: 94.00
  • Shipping Length IN: 23.81
  • Shipping Width IN: 13.00
  • Shipping Height IN: 32.25
  • Max Viscosity:
  • SKU: WRS20B3P6PPUV000SP
  • MPN: S20B3P6PPUV000.
  • Customs Code: HTS Code 8413.50.00.50
    Schedule B Code 8413.50.00.50
    HS Code 84131900
    ECCN Code EAR99
  • Seal Material:

TECHNICAL DOCUMENTS

For domestic purchase only. Not for export.
