Sandpiper® S1FB1HGTANS000. 1 Inch NPT S1F Standard Duty Top Discharge Metallic Ball Valve Pump

Part Number: S1FB1HGTANS000.
The actual product may vary from images shown
$13,815.00
QTY:


S1FB1HGTANS000. DETAILS

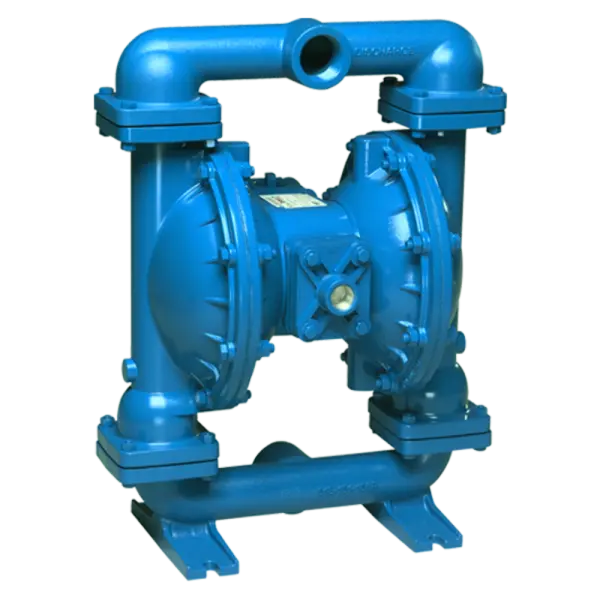

Sandpiper® S1FB1HGTANS000. 1 Inch NPT S1F Standard Duty Top Discharge Metallic Ball Valve Pump

S1F Metallic is ideally suited for intermittent/on-demand, portable moderately abrasive fluids and suspended solids.The pumps are available with TPE (thermal plastic elastomers) and PTFE options in diaphragms and check valves.

Recommended Accessories and Kits Sold Separately:

  • Sandpiper® 476.228.000 Air End Kit
  • Sandpiper® 476.194.635 Wet End Kit
  • Contact Us for Other Options and Accessories

S1FB1HGTANS000. SPECS

  • Pump Type: S15 Metallic Ball Valve Diaphragm Pump
  • Brand: SANDPIPER®
  • Wetted Material: Hastelloy
  • Non-Wetted Material: Aluminum
  • Main Material:
  • Air Inlet Size: 0
  • Check Valve Seat:
  • Check Valve Type:
  • Diaphragm Material: PTFE/Neop
  • Porting Position: Top Discharge
  • Air Inlet Connection Type:
  • Displacement per Stroke (gal):
  • Ball Material:
  • Elastomers: PTFE
  • Inlet Size: 1
  • Inlet Connection Type: NPT
  • Max Air Inlet Pressure:
  • Max FLow Rate: 45 GPM
  • Max Solids Size:
  • Outlet Size: 1
  • Outlet Connection Type: NPT
  • Manifold Gasket:
  • Shipping Weight LBS: 43.00
  • Shipping Length IN: 10.25
  • Shipping Width IN: 9.09
  • Shipping Height IN: 12.88
  • Max Viscosity:
  • SKU: WRS1FB1HGTANS000SP
  • MPN: S1FB1HGTANS000.
  • Customs Code: HTS Code 8413.50.00.50
    Schedule B Code 8413.50.00.50
    ECCN Code 2B350.i
  • Seal Material:
