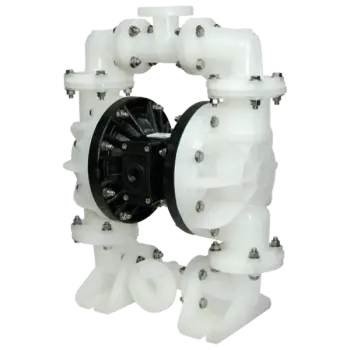

Sandpiper® S15B3PBP1US000. 1 1/2" Standard Duty S15 Top Discharge Poly Ball Valve Pump

Part Number: S15B3PBP1US000.
The actual product may vary from images shown
$5,830.00
QTY:


S15B3PBP1US000. DETAILS

Sandpiper® S15B3PBP1US000. 1 1/2" Standard Duty S15 Top Discharge Poly Ball Valve Pump

Standard Duty Metallic Pumps are ideally suited for intermittent / on-demand, portable, moderately abrasive fluids, and suspended solids. Standard duty pumps are constructed in Aluminum, Cast Iron, Stainless Steel and non-metallic materials such as PTFE, Polypropylene, and PVDF with elastomer TPE (thermal plastic elastomers) and PTFE options in diaphragms and check valves.


Pump Kit Add-On Option: None
Leak/Spill Prevention: Standard

Recommended Accessories and Kits Sold Separately:

  • Sandpiper® 476.255.360 Air End Kit

Supersedes and Replaces No Longer Available Part #(s) S15B3P2PPAS0SB.

S15B3PBP1US000. SPECS

  • Pump Type: S15 Non-Metallic Ball Valve Diaphragm Pump
  • Brand: SANDPIPER®
  • Wetted Material: Polypropylene
  • Non-Wetted Material: Polypropylene with PTFE Coated Hardware
  • Main Material: Polypropylene
  • Air Inlet Size: 0
  • Check Valve Seat: Ball Valve
  • Check Valve Type: Ball
  • Diaphragm Material: Nitrile
  • Porting Position: Top Discharge
  • Air Inlet Connection Type:
  • Displacement per Stroke (gal): 0.43
  • Ball Material:
  • Elastomers: Nitrile
  • Inlet Size: 1.5
  • Inlet Connection Type: Universal ANSI/DIN Flange
  • Max Air Inlet Pressure: 100
  • Max FLow Rate: 100 GPM
  • Max Solids Size: 0.47
  • Outlet Size: 1.5
  • Outlet Connection Type: Universal ANSI/DIN Flange
  • Manifold Gasket:
  • Shipping Weight LBS: 82.00
  • Shipping Length IN: 23.00
  • Shipping Width IN: 13.00
  • Shipping Height IN: 28.75
  • Max Viscosity:
  • SKU: WRS15B3PBP1US000SP
  • MPN: S15B3PBP1US000.
  • Customs Code: HTS Code 8413.50.00.50
    Schedule B Code 8413.50.00.50
    HS Code 84131900
    ECCN Code EAR99
  • Seal Material:

TECHNICAL DOCUMENTS
