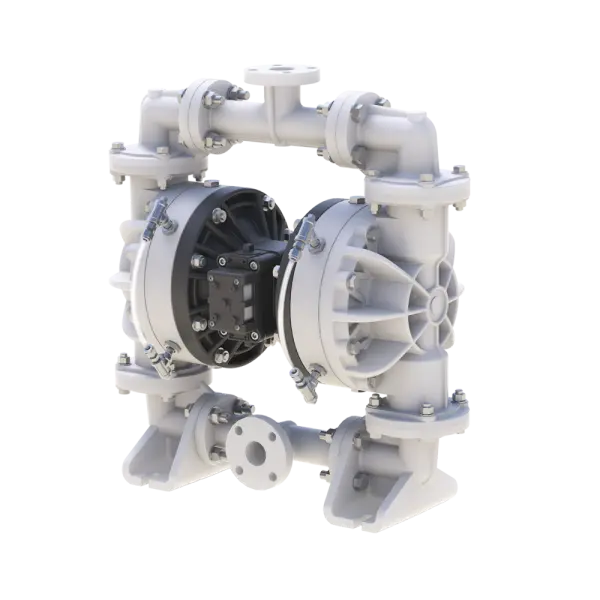

Sandpiper® S15B3P3PPUV000. 1 1/2" Containment Duty S15 Top Discharge Poly Ball Valve Pump

Part Number: S15B3P3PPUV000.
The actual product may vary from images shown
$8,495.00
QTY:


S15B3P3PPUV000. DETAILS

Sandpiper® S15B3P3PPUV000. 1 1/2" Containment Duty S15 Top Discharge Poly Ball Valve Pump

Containment Duty Metallic and Non-Metallic Pumps are ideal for highly corrosive and hazardous chemical fluid requirements. All containment duty pumps are exclusively designed with containment chambers, hydraulically balanced/coupled pumping diaphragm and driver diaphragm assemblies. All containment chambers are designed to accommodate visual, mechanical and low voltage leak detection devices. CD pumps are constructed of Aluminum, Cast Iron, Stainless Steel, Alloy C, Polypropylene and PVDF with TPE (thermal plastic elastomers), PTFE options in diaphragms and check valves.

Recommended Accessories and Kits Sold Separately:

  • Sandpiper® 476.254.000 Air End Kit
  • Contact Us for Sandpiper® Wet End Kit Information
  • Contact Us for Other Options and Accessories

Supersedes and Replaces No Longer Available Part #(s) S15B3P3PPAV000.

S15B3P3PPUV000. SPECS

  • Pump Type: S15 Non-Metallic Containment Duty Pump
  • Brand: SANDPIPER®
  • Wetted Material: Polypropylene
  • Non-Wetted Material: Polypropylene
  • Main Material: Polypropylene
  • Air Inlet Size: 0
  • Check Valve Seat: Ball Valve
  • Check Valve Type: Ball
  • Diaphragm Material: PTFE Pumping, PTFE-Santoprene Driver
  • Porting Position: Top Discharge
  • Air Inlet Connection Type:
  • Displacement per Stroke (gal): 0.43
  • Ball Material:
  • Elastomers: PTFE
  • Inlet Size: 1.5
  • Inlet Connection Type: Universal ANSI/DIN Flange
  • Max Air Inlet Pressure: 100
  • Max FLow Rate: 100 GPM
  • Max Solids Size: 0.47
  • Outlet Size: 1.5
  • Outlet Connection Type: Universal ANSI/DIN Flange
  • Manifold Gasket:
  • Shipping Weight LBS: 149.00
  • Shipping Length IN: 27.62
  • Shipping Width IN: 15.00
  • Shipping Height IN: 28.75
  • Max Viscosity:
  • SKU: WRS15B3P3PPUV000SP
  • MPN: S15B3P3PPUV000.
  • Customs Code: HTS Code 8413.50.00.50
    Schedule B Code 8413.50.00.50
    HS Code 84131900
    ECCN Code EAR99
  • Seal Material:
