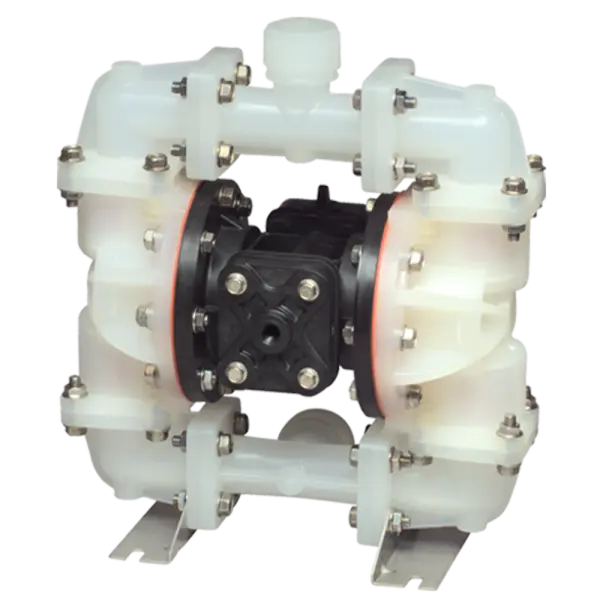

Sandpiper® S07B1P2PPBS000. S07 Top Discharge Non-Metallic Ball Valve Pump

Part Number: S07B1P2PPBS000.
The actual product may vary from images shown
$1,510.00
QTY:


S07B1P2PPBS000. DETAILS

Sandpiper® S07B1P2PPBS000. 3/4" BSP S07 Top Discharge Non-Metallic Ball Valve Pump

S07 Non-Metallic Pumps are ideally suited for highly corrosive fluids intermittent/on-demand, portable, low abrasive fluids and suspended solids. The pumps are constructed with TPE (thermal plastic elastomers) and PTFE options in diaphragms and check valves.

Recommended Accessories and Kits Sold Separately:

  • Sandpiper® 476.166.654 Wet End Kit
  • Sandpiper® 476.219.000 Air End Kit

S07B1P2PPBS000. SPECS

  • Pump Type: S07 Non-Metallic Ball Valve Diaphragm Pump
  • Brand: SANDPIPER®
  • Wetted Material: Polypropylene
  • Non-Wetted Material: Polypropylene
  • Main Material:
  • Air Inlet Size: 0
  • Check Valve Seat: Ball Valve
  • Check Valve Type: Ball
  • Diaphragm Material: PTFE - Santroprene Backup
  • Porting Position: BSP Threads
  • Air Inlet Connection Type:
  • Displacement per Stroke (gal): 0.03
  • Ball Material:
  • Elastomers: PTFE
  • Inlet Size: 0.75
  • Inlet Connection Type: BSP Tapered
  • Max Air Inlet Pressure: 100
  • Max FLow Rate: 23 GPM
  • Max Solids Size: 0.015
  • Outlet Size: 0.75
  • Outlet Connection Type: BSP Tapered
  • Manifold Gasket:
  • Shipping Weight LBS: 18.00
  • Shipping Length IN: 11.81
  • Shipping Width IN: 7.06
  • Shipping Height IN: 13.34
  • Max Viscosity:
  • SKU: WRS07B1P2PPBS000SP
  • MPN: S07B1P2PPBS000.
  • Customs Code: HTS Code 8413.50.00.50
    Schedule B Code 8413.50.00.50
    HS Code 84131900
    ECCN Code EAR99
  • Seal Material:

TECHNICAL DOCUMENTS
