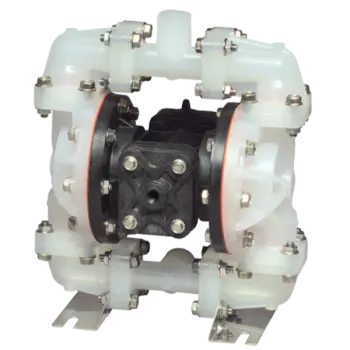

Sandpiper® S05B2P1TPNS000. S05 Non-Metallic Top Discharge Standard Duty Pump

Part Number: S05B2P1TPNS000.
The actual product may vary from images shown
QTY:


S05B2P1TPNS000. DETAILS

Please add as an RFQ or contact us for substitute Sandpiper® pump options as this pump is no longer available with the seat configuration.
Sandpiper® S05B2P1TPNS000. S05 Non-Metallic Top Discharge Standard Duty Pump

Standard Duty Metallic Pumps are ideally suited for intermittent / on-demand, portable, moderately abrasive fluids, and suspended solids. Standard duty pumps are constructed in Aluminum, Cast Iron, Stainless Steel and non-metallic materials such as PTFE, Polypropylene, and PVDF with elastomer TPE (thermal plastic elastomers) and PTFE options in diaphragms and check valves.

Recommended Accessories and Kits Sold Separately:

  • Sandpiper® 476.219.000 Air End Kit
  • Sandpiper® 476.202.354 Wet End Kit
  • Contact Us for Other Options and Accessories

S05B2P1TPNS000. SPECS

  • Pump Type: S05 Non-Metallic Ball Valve Diaphragm Pump
  • Brand: SANDPIPER®
  • Wetted Material: Polypropylene
  • Non-Wetted Material: Polypropylene
  • Air Inlet Size: 0
  • Check Valve Seat: PTFE
  • Check Valve Type: Ball
  • Diaphragm Material: Santoprene
  • Porting Position: Top Discharge
  • Displacement per Stroke (gal): 0.03
  • Elastomers: Santoprene
  • Inlet Size: 0.5
  • Inlet Connection Type: NPT
  • Max Air Inlet Pressure: 100
  • Max FLow Rate: 14 GPM
  • Max Solids Size: 0.125
  • Outlet Size: 0.5
  • Outlet Connection Type: NPT
  • Shipping Weight LBS: 11.00
  • Shipping Length IN: 10.11
  • Shipping Width IN: 7.13
  • Shipping Height IN: 11.54
  • SKU: WRS05B2P1TPNS000SP
  • MPN: S05B2P1TPNS000.
  • Customs Code: HTS Code 8413.50.00.50
    Schedule B Code 8413.50.00.50
    HS Code 84131900

For domestic purchase only. Not for export.
