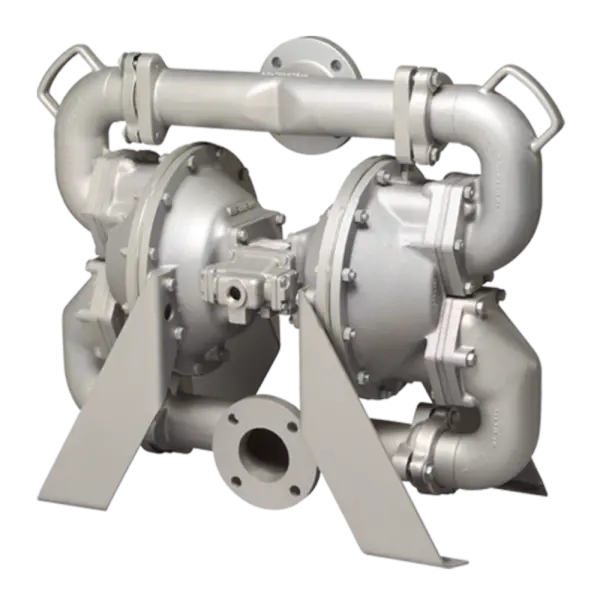

Sandpiper® HDF4M,DA2II. HDF4-M Bottom Discharge Metallic Flap Valve Pump

Part Number: HDF4M,DA2II.
The actual product may vary from images shown
$16,085.00
QTY:


HDF4M,DA2II. DETAILS

Sandpiper® HDF4M,DA2II. 4" ANSI HDF4-M Bottom Discharge Metallic Flap Valve Pump

4" Heavy Duty Flap Valve Pumps are recommended for abrasive slurries, suspended and non-suspended solids and line size solids requirements. HDF pumps are enhanced with an extended wear packages.

Recommended Accessories and Kits Sold Separately:

  • Sandpiper® TA3,N2CI. Pulsation Dampener
  • Sandpiper® 476.250.632 Wet End Kit
  • Sandpiper® 476.251.000 Air End Kit
  • Sandpiper® 020.106.000 Filter/Regulator
  • Sandpiper® 020.052.004 Replacement Filter Element
  • Sandpiper® 032.036.000. Pneumatic Liquid Level Control
  • Sandpiper® 476.316.000 Air End Wear Kit (Seals)

HDF4M,DA2II. SPECS

  • Pump Type: HDF3-M / HDF4-M Heavy Duty Flap Valve Pumps
  • Brand: SANDPIPER®
  • Wetted Material: CI
  • Non-Wetted Material: CI
  • Main Material:
  • Air Inlet Size: 0
  • Check Valve Seat: Yes
  • Check Valve Type:
  • Diaphragm Material: N
  • Porting Position: 4" ANSI 150# Flange
  • Air Inlet Connection Type:
  • Displacement per Stroke (gal): 1.23
  • Ball Material:
  • Elastomers:
  • Inlet Size: 4
  • Inlet Connection Type: ANSI
  • Max Air Inlet Pressure:
  • Max FLow Rate: 260 GPM
  • Max Solids Size: 3
  • Outlet Size: 4
  • Outlet Connection Type: ANSI
  • Manifold Gasket:
  • Shipping Weight LBS: 390.00
  • Shipping Length IN: 16.19
  • Shipping Width IN: 32.31
  • Shipping Height IN: 31.00
  • Max Viscosity:
  • SKU: WRHDF4MDA2IISP
  • MPN: HDF4M,DA2II.
  • Customs Code: HTS Code 8413.50.00.50
    Schedule B Code 8413.50.00.50
    ECCN Code EAR99
  • Seal Material:
For domestic purchase only. Not for export.
