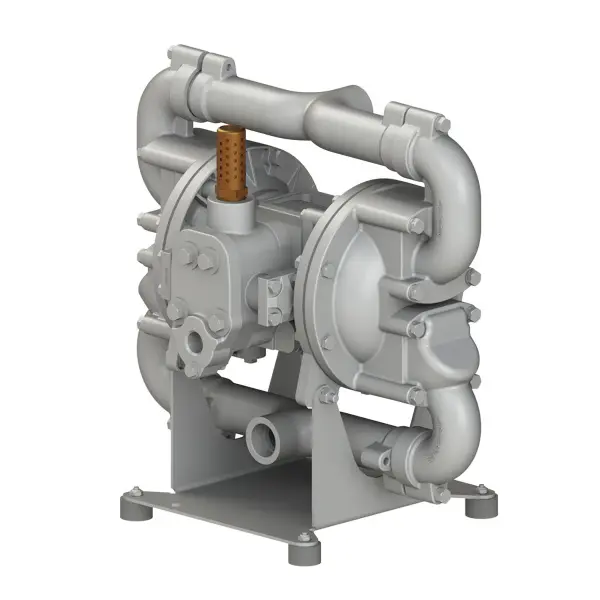

Sandpiper® HDF1,DW2A. 1" HDF1 / HDF25 Aluminum Flap Valve AODD Pump

The flexible, portable and lightweight design of the SANDPIPER HDF1 heavy-duty flap valve pump offers maximum convenience when faced with the most common challenges in sump applications, mine dewatering and any liquid application involving solids.

The HDF1 has a superior flow rate to all other 1" AODD pumps and is a proven and trusted solution even in the harshest applications, effortlessly moving abrasive slurries, suspended and non-suspended solids and line-size solids.

The SANDPIPER pump design offers a small footprint, making it an excellent choice for both portable and permanent applications. The superior suction lift capabilities, combined with its solids-handling capabilities, make it the ideal solution for sump and dewatering applications.

The bottom discharge porting prevents settling solids from damaging the diaphragm and shortening the pump life. HDF1 pumps are thick wall-constructed of sand-casted aluminum, cast iron and stainless steel with elastomer and TPE (thermoplastic elastomer) diaphragms and check valves.

• Port size: 1" NPT/BSP

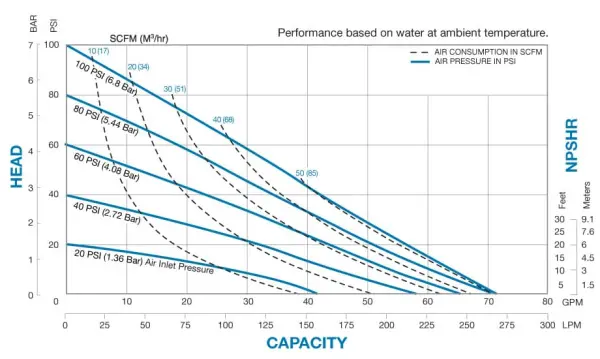

• Capacity: 0 to 70 gpm (265 lpm)
• Suction lifts: best in class for a 1" pump
• Air distribution valve: no-lube, no-stall externally serviceable air distribution system (ESADS+) design
• Solids handling: up to 1" (25 mm)
• Heads: up to 125 psi or 289 ft of water (8.6 bar or 88 meters)
• Max operating pressure: 125 psi (8.6 bar)

Contact Us for Sandpiper® Wet End Kit Information

Recommened Sandpiper® 476.311.000 Air End Kit
