Sandpiper® HDB4,DGN4CI. HDB4 Bottom Discharge Metallic Ball Valve Pump

Part Number: HDB4,DGN4CI.
The actual product may vary from images shown
$19,205.00
QTY:


HDB4,DGN4CI. DETAILS

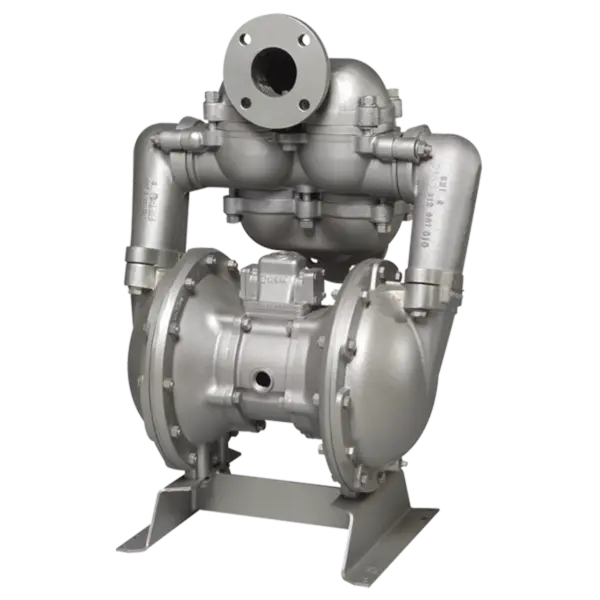

Sandpiper® HDB4,DGN4CI. 4" ANSI HDB4 Bottom Discharge Metallic Ball Valve Pump

4" Heavy Duty Ball Valve Pumps are ideal for thin to viscous and small solids-laden fluids. HDB pumps are enhanced with an extended wear package.

Recommended Accessories and Kits Sold Separately:

  • Sandpiper® TA3,NG2CI. Pulsation Dampener
  • Sandpiper® 476.327.635 Wet End Kit
  • Sandpiper® 476.251.000 Air End Kit
  • Sandpiper® 020.106.000 Filter/Regulator
  • Sandpiper® 020.052.004 Replacement Filter Element
  • Sandpiper® 032.036.000. Pneumatic Liquid Level Control
  • Sandpiper® 476.315.000 Air End Wear Kit (Seals)

HDB4,DGN4CI. SPECS

  • Pump Type: HDB3 & HDB4 Heavy Duty Ball Valve Pumps
  • Brand: SANDPIPER®
  • Wetted Material: Cast Iron
  • Non-Wetted Material: Aluminum
  • Main Material:
  • Air Inlet Size: 0
  • Check Valve Seat: Yes
  • Check Valve Type: Ball
  • Diaphragm Material: PTFE - Neoprene Backup
  • Porting Position:
  • Air Inlet Connection Type:
  • Displacement per Stroke (gal): 1.90
  • Ball Material:
  • Elastomers: PTFE
  • Inlet Size: 4
  • Inlet Connection Type: ANSI Flange
  • Max Air Inlet Pressure: 125
  • Max FLow Rate: 290 GPM
  • Max Solids Size: 0.875
  • Outlet Size: 4
  • Outlet Connection Type: ANSI Flange
  • Manifold Gasket:
  • Shipping Weight LBS: 495.00
  • Shipping Length IN: 30.34
  • Shipping Width IN: 26.06
  • Shipping Height IN: 31.19
  • Max Viscosity:
  • SKU: WRHDB4DGN4CISP
  • MPN: HDB4,DGN4CI.
  • Customs Code: HTS Code 8413.50.00.50
    Schedule B Code 8413.50.00.50
    ECCN Code EAR99
  • Seal Material:
For domestic purchase only. Not for export.
