Sandpiper® HDB3,TS4CI. HDB3 Top Discharge Metallic Ball Valve Pump

Part Number: HDB3,TS4CI.

The actual product may vary from images shown

$20,339.82

QTY:

HDB3,TS4CI. DETAILS

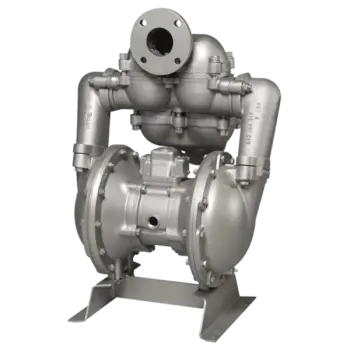

Sandpiper® HDB3,TS4CI 3" ANSI HDB3 Top Discharge Metallic Ball Valve Pump

3" Heavy Duty Ball Valve Pumps are ideal for thin to viscous and small solids-laden fluids. HDB pumps are enhanced with an extended wear package.

Recommended Accessories and Kits Sold Separately:

Pump Type: HDB3 & HDB4 Heavy Duty Ball Valve Pumps
Brand: SANDPIPER®
Wetted Material: Cast Iron
Non-Wetted Material: Cast Iron
Main Material:
Air Inlet Size: 0
Check Valve Seat: Ball Valve
Check Valve Type: Ball
Diaphragm Material: Santoprene
Porting Position:
Air Inlet Connection Type:
Ball Material:
Displacement per Stroke (gal): 1.90
Elastomers: Santoprene
Inlet Size: 3
Inlet Connection Type: ANSI Flange
Max Air Inlet Pressure: 125

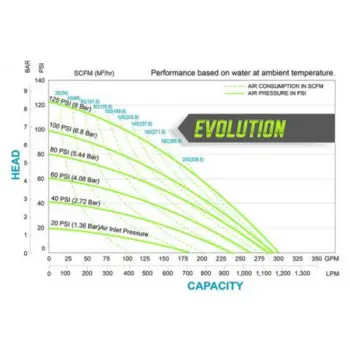

Max FLow Rate: 290 GPM
Max Solids Size: 0.875
Outlet Size: 3
Outlet Connection Type: ANSI Flange
Shipping Weight LBS: 440.00
Manifold Gasket:
Shipping Length IN: 26.06
Shipping Width IN: 24.30
Shipping Height IN: 36.40
SKU: WRHDB3TS4CISP
Max Viscosity:
MPN: HDB3,TS4CI.
Customs Code: HTS Code 8413.50.00.50
Schedule B Code 8413.50.00.50
HS Code 84131900
ECCN Code EAR99
Seal Material:

For domestic purchase only. Not for export.
