Home / Warren Rupp® Sandpiper® Pumps / Sandpiper® G30B1ATTXNSX00. G30 Top Discharge Metallic Ball Valve Pump

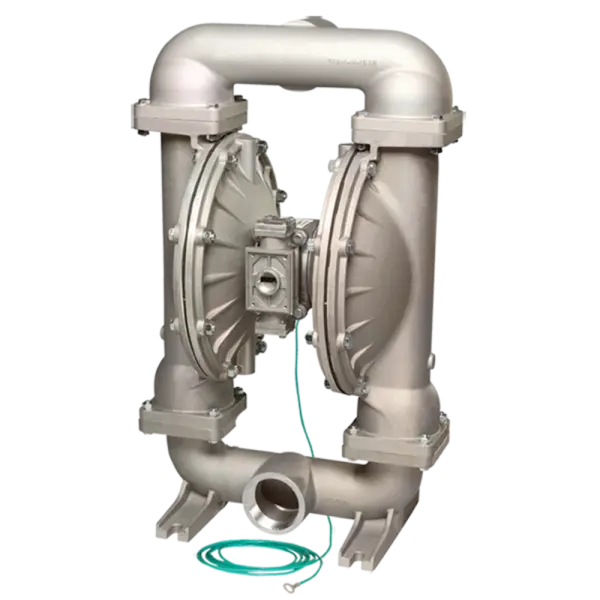

Sandpiper® G30B1ATTXNSX00. G30 Top Discharge Metallic Ball Valve Pump

Part Number: G30B1ATTXNSX00.
The actual product may vary from images shown
$7,205.00
QTY:


G30B1ATTXNSX00. DETAILS

Sandpiper® G30B1ATTXNSX00. 3" NPT G30 Top Discharge Metallic Ball Valve Pump

Recommended Accessories and Kits Sold Separately:

  • Sandpiper® 476.227.000 Air End Kit
  • Sandpiper® 476.207.649 Wet End Kit
  • Contact Us for Other Options and Accessories

G30B1ATTXNSX00. SPECS

  • Pump Type: G30 Diaphragm Pump
  • Brand: SANDPIPER®
  • Wetted Material: Aluminum
  • Non-Wetted Material: Unpainted Aluminum
  • Main Material:
  • Air Inlet Size: 0
  • Check Valve Seat: Ball Valve
  • Check Valve Type: Ball
  • Diaphragm Material: PTFE/Nitrile - Buna
  • Porting Position: NPT Threads
  • Air Inlet Connection Type:
  • Displacement per Stroke (gal): 0.94
  • Ball Material:
  • Elastomers: PTFE
  • Inlet Size: 3
  • Inlet Connection Type: NPT
  • Max Air Inlet Pressure: 100
  • Max FLow Rate: 285 GPM
  • Max Solids Size: 0.38
  • Outlet Size: 3
  • Outlet Connection Type: NPT
  • Manifold Gasket:
  • Shipping Weight LBS: 116.00
  • Shipping Length IN: 19.65
  • Shipping Width IN: 15.75
  • Shipping Height IN: 32.08
  • Max Viscosity:
  • SKU: WRG30B1ATTXNSX00SP
  • MPN: G30B1ATTXNSX00.
  • Customs Code: HTS Code 8413.50.00.50
    Schedule B Code 8413.50.00.50
    HS Code 84131900
    ECCN Code EAR99
  • Seal Material:

TECHNICAL DOCUMENTS

For domestic purchase only. Not for export.
