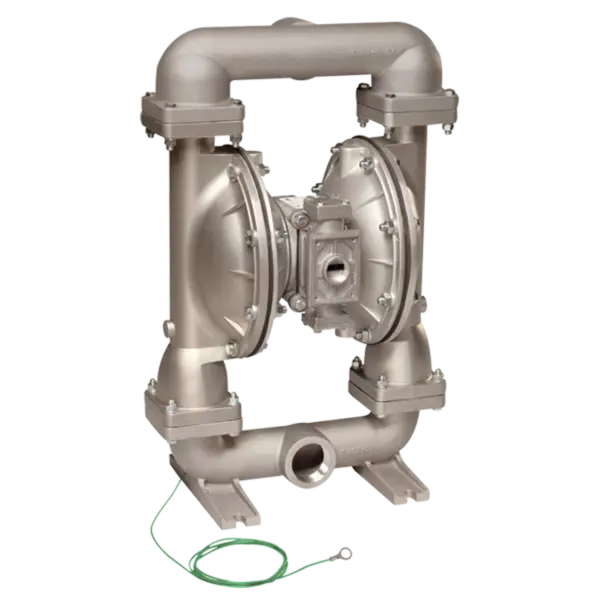

Sandpiper® G20B1STTXRSX00. G20 Top Discharge Metallic Ball Valve Pump

Part Number: G20B1STTXRSX00.
The actual product may vary from images shown
$12,105.00
QTY:


G20B1STTXRSX00. DETAILS

Sandpiper® G20B1STTXRSX00. 2" NPT G20 Top Discharge Metallic Ball Valve Pump

Recommended Accessories and Kits Sold Separately:

  • Sandpiper® 476.206.649 Wet End Kit
  • Sandpiper® 476.227.000 Air End Kit
  • Sandpiper® 032.036.000. Pneumatic Liquid Level Control
  • Sandpiper® 476.227.363 Air End Repair Kit W/FKM
  • Sandpiper® 476.320.000 Air End Wear Kit
  • Sandpiper® 476.320.363 Air End Wear Kit W/FKM
  • Sandpiper® 020.059.000 3/4" Gas Regulator W/Gauge
  • Sandpiper® 020.064.000 3/4" NPT Filter w/Drain

G20B1STTXRSX00. SPECS

  • Pump Type: G20 Diaphragm Pump
  • Brand: SANDPIPER®
  • Wetted Material: Stainless Steel
  • Non-Wetted Material: Aluminum Unpainted
  • Main Material:
  • Air Inlet Size: 0
  • Check Valve Seat: Ball Valve
  • Check Valve Type: Ball
  • Diaphragm Material: PTFE - Nitrile-Buna Backup
  • Porting Position:
  • Air Inlet Connection Type:
  • Displacement per Stroke (gal): 0.46
  • Ball Material:
  • Elastomers: PTFE
  • Inlet Size: 2
  • Inlet Connection Type: ANSI Flange
  • Max Air Inlet Pressure: 100
  • Max FLow Rate: 200 GPM
  • Max Solids Size: 0.25
  • Outlet Size: 2
  • Outlet Connection Type: ANSI Flange
  • Manifold Gasket:
  • Shipping Weight LBS: 114.00
  • Shipping Length IN: 16.93
  • Shipping Width IN: 16.00
  • Shipping Height IN: 29.92
  • Max Viscosity:
  • SKU: WRG20B1STTXRSX00SP
  • MPN: G20B1STTXRSX00.
  • Customs Code: HTS Code 8413.50.00.50
    Schedule B Code 8413.50.00.50
    ECCN Code EAR99
  • Seal Material:
