Home / Warren Rupp® Sandpiper® Pumps / Sandpiper® G05B1A5T0NSX00. G05 Metallic Top Discharge Oil & Gas: G-Series Pump

Sandpiper® G05B1A5T0NSX00. G05 Metallic Top Discharge Oil & Gas: G-Series Pump

Part Number: G05B1A5T0NSX00.

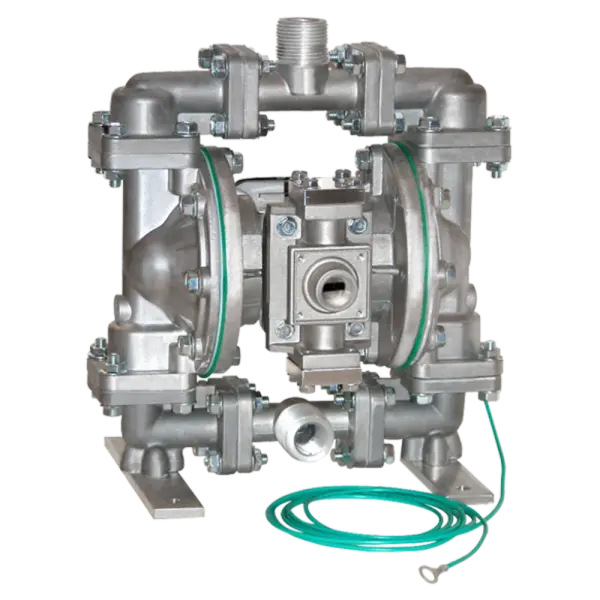

The actual product may vary from images shown
$1,855.00
QTY:


G05B1A5T0NSX00. DETAILS

Sandpiper® G05B1A5T0NSX00. G05 Metallic Top Discharge Oil & Gas: G-Series Pump

Natural Gas Operated Pumps are CSA* (Canadian Standards Association) certified to ANSI LC6 standard for operation using sweet or sour natural gas. The pumps are also compliant with NACE Standard MR0175/ISO15156. The gas pump utilizes Aluminum or 316 Stainless Steel wetted construction with Nitrile or Virgin PTFE diaphragms and check balls. The gas valve is constructed of Aluminum with Nitrile or FKM (fluorocarbon) elastomers. Pumps are fully groundable, preventing static discharge. A Stainless Steel gas valve option is available on G15 to G30 pumps for more corrosive applications.

Recommended Accessories and Kits Sold Separately:

  • Sandpiper® 476.237.363 Air End Kit
  • Contact Us for Sandpiper® Wet End Kit Information
  • Contact Us for Other Options and Accessories

G05B1A5T0NSX00. SPECS

  • Pump Type: G05 Diaphragm Pump
  • Brand: SANDPIPER®
  • Wetted Material: Aluminum
  • Non-Wetted Material: Unpainted Aluminum
  • Main Material:
  • Air Inlet Size: 0
  • Check Valve Seat: PTFE
  • Check Valve Type: Ball
  • Diaphragm Material: Nitrile - Buna
  • Porting Position: Top Discharge
  • Air Inlet Connection Type:
  • Displacement per Stroke (gal): 0.03
  • Ball Material:
  • Elastomers: PTFE
  • Inlet Size: 0.5
  • Inlet Connection Type: NPT
  • Max Air Inlet Pressure: 100
  • Max FLow Rate: 15 GPM
  • Max Solids Size: 0.125
  • Outlet Size: 0.5
  • Outlet Connection Type: NPT
  • Manifold Gasket:
  • Shipping Weight LBS: 15.00
  • Shipping Length IN: 10.25
  • Shipping Width IN: 6.88
  • Shipping Height IN: 11.50
  • Max Viscosity:
  • SKU: WRG05B1A5T0NSX00SP
  • MPN: G05B1A5T0NSX00.
  • Customs Code: HTS Code 8413.50.00.50
    Schedule B Code 8413.50.00.50
    HS Code 84131900
  • Seal Material:

For domestic purchase only. Not for export.
