Home / Warren Rupp® Sandpiper® Pumps / Sandpiper® F20B1SHHATF600. 2.5" F20 Top Discharage SS Ball Valve AODD Pump

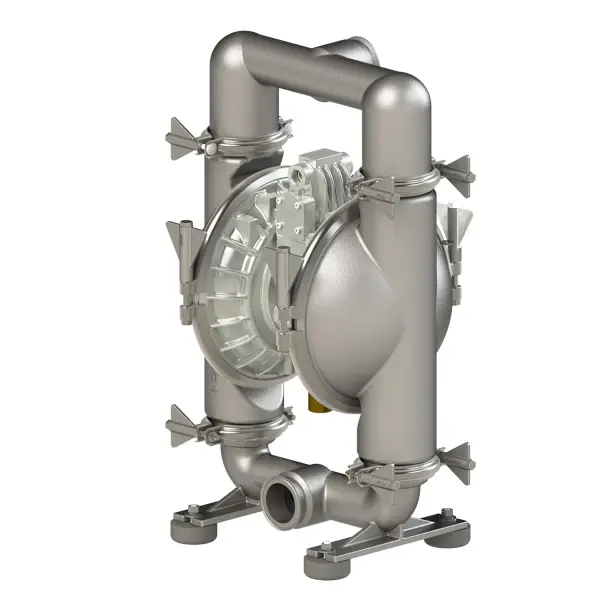

Sandpiper® F20B1SHHATF600. 2.5" F20 Top Discharage SS Ball Valve AODD Pump

Part Number: F20B1SHHATF600.
The actual product may vary from images shown
$6,387.00
QTY:


F20B1SHHATF600. DETAILS

Sandpiper® F20B1SHHATF600. 2.5" F20 Top Discharage SS Ball Valve AODD PumpPlease Note: This product is not for export.

The SANDPIPER F15 1½", F20 2" & F30 3" are FDA-compliant pumps and EC 1935 certified for food-contacting materials. These clamped ball valve pumps are ideally suited for a variety of food and beverage processing, pharmaceutical and cosmetic industry applications where clamped-construction pumps are necessary for quick, daily teardowns for COP (clean-out-of-place) operations.


As AODD pumps that are part of the SANDPIPER FB-Series family of FDA pumps, they feature:
  • Compliance with Food Contacting Materials requirements
    • 316 stainless steel wetted components electropolished to 125 u-in (3.175 u-m) finish
    • FDA Santoprene, PTFE, FDA Hytrel diaphragms, check balls and seats
    • Band clamp and wing nut fasteners for quick teardowns and reassembly
    • Maximum flow rates of 71 gpm (268 lpm), 185 gpm (700 lpm) and 234 gpm (886 lpm)
  • Tri-clamp connections
  • Nickel-plated aluminum (F20 and F30 only) or stainless steel non-wetted components for compatibility with washdown chemicals
  • Interchangeability with older or existing AODD pump technology

Recommended Air End Kit 476.375.000

Contact Us for Sandpiper® Wet End Kit Information

F20B1SHHATF600. SPECS

  • Pump Type: F-Series FDA Compliant Pumps
  • Brand: SANDPIPER®
  • Wetted Material: EP Stainless Steel
  • Non-Wetted Material: Unpainted Aluminum
  • Main Material:
  • Air Inlet Size: 0.5
  • Check Valve Seat: FDA Hytrel
  • Check Valve Type:
  • Diaphragm Material: FDA Hytrel
  • Porting Position:
  • Air Inlet Connection Type:
  • Displacement per Stroke (gal):
  • Ball Material:
  • Elastomers: FDA Hytrel
  • Inlet Size: 2.5
  • Inlet Connection Type: Tri-Clamp
  • Max Air Inlet Pressure:
  • Max FLow Rate: 185 GPM
  • Max Solids Size: 0.25
  • Outlet Size: 2.5
  • Outlet Connection Type: Tri-Clamp
  • Manifold Gasket:
  • Shipping Weight LBS: 106.00
  • Shipping Length IN: 17.18
  • Shipping Width IN: 13.62
  • Shipping Height IN: 27.22
  • Max Viscosity:
  • SKU: WRF20B1SHHATF600SP
  • MPN: F20B1SHHATF600.
  • Customs Code:
  • Seal Material:

For domestic purchase only. Not for export.
