Sandpiper® F10B1SDSPTF600. 1" EP SS FDA-Compliant Metallic Ball Valve, FDA Santo Diaphragm

Part Number: F10B1SDSPTF600.

The actual product may vary from images shown

$3,356.61

QTY:

F10B1SDSPTF600. DETAILS

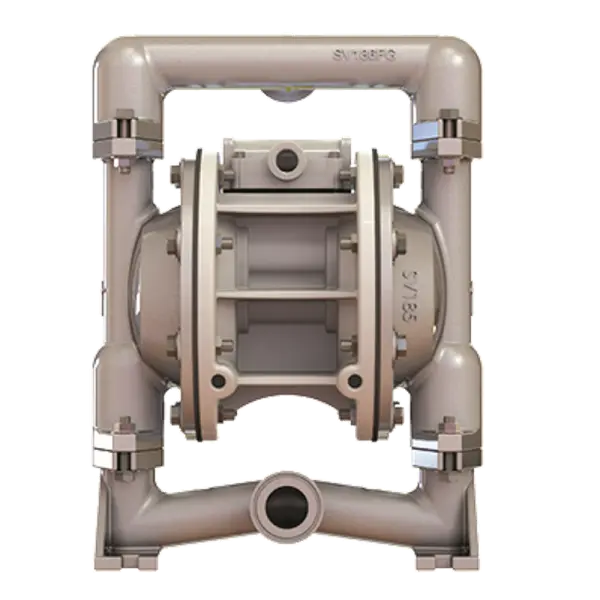

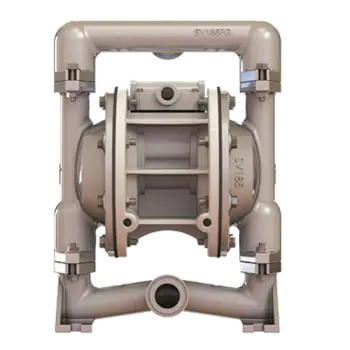

Sandpiper® F10B1SDSPTF600. 1" Electropolished Stainless Steel FDA-Compliant Metallic Ball Valve, FDA Santoprene Diaphragm

The Sandpiper® F10 1" FDA-compliant pumps are EC 1935 certified for food-contacting materials. These ball valve pumps are ideally suited for a variety of food and beverage processing, pharmaceutical and cosmetic industry applications where electropolished surfaces are required.

As AODD pumps that are part of the Sandpiper® F-Series family of FDA pumps, they feature:

Compliance with Food Contacting Materials requirements
- 316 stainless steel wetted components electropolished to 125 u-in (3.175 u-m) finish
- FDA Santoprene, PTFE, FDA Hytrel diaphragms, check balls and seats
Bolted construction for more robust, leak-free performance than typical clamped-construction food pumps

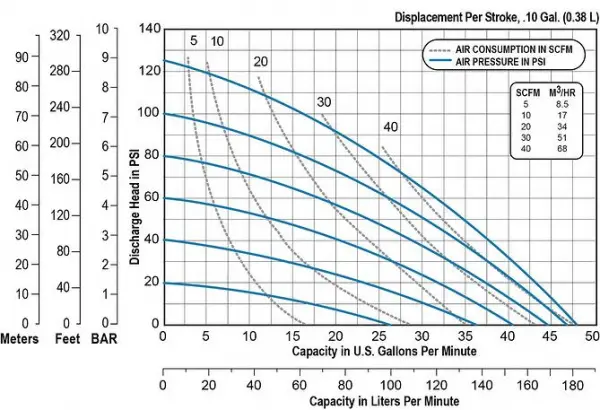

Maximum flow rates of 49 gpm (186 lpm)
1" tri-clamp connections
Nickel-plated aluminum or polypropylene non-wetted components for compatibility with washdown chemicals

1" F-Series pumps are commonly used in:

Clean-In-Place chemicals
Chemical transfer and injection
Ingredient and flavoring injection
Fragrance injection
Product transfer

Recommended Accessories and Kits Sold Separately:

Sandpiper® 476.373.000 Air End Kit
Sandpiper® 476.378.351 Wet End Kit
Contact Us for Other Options and Accessories
