Home / Warren Rupp® Sandpiper® Pumps / Sandpiper® EH2M,TN4I. EH2-M Top Discharge Metallic Ball Valve Pump

Sandpiper® EH2M,TN4I. EH2-M Top Discharge Metallic Ball Valve Pump

Part Number: EH2M,TN4I.
The actual product may vary from images shown
$8,925.00
QTY:


EH2M,TN4I. DETAILS

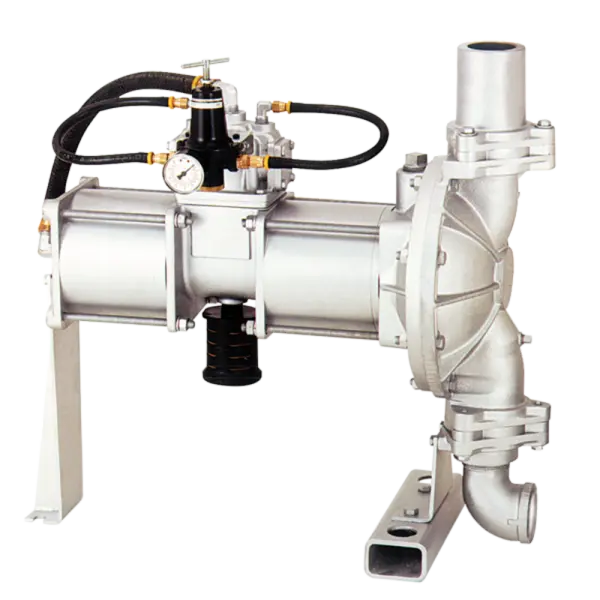

Sandpiper® EH2M,TN4I. 2" NPT EH2-M Top Discharge Metallic Ball Valve Pump

Air-operated single diaphragm high pressure metallic pumps deliver discharge pressure twice the inlet pressure, up to 250 PSI (17 BAR). Designed for filter press feed and applications requiring higher discharge pressures.

Recommended Accessories and Kits Sold Separately:

  • Sandpiper® 476.247.000 Air End Kit
  • Sandpiper® 476.048.365 Wet End Kit
  • Contact Us for Other Options and Accessories

EH2M,TN4I. SPECS

  • Pump Type: EH2-M Type 4 (2:1 Ratio) High Pressure Duty Pump
  • Brand: SANDPIPER®
  • Wetted Material: Cast Iron
  • Non-Wetted Material: Cast Iron
  • Main Material:
  • Air Inlet Size: 0
  • Check Valve Seat: Ball Valve
  • Check Valve Type: Ball
  • Diaphragm Material: Neoprene
  • Porting Position:
  • Air Inlet Connection Type:
  • Displacement per Stroke (gal): 0.36
  • Ball Material:
  • Elastomers: Neoprene
  • Inlet Size: 2
  • Inlet Connection Type: NPT
  • Max Air Inlet Pressure: 125
  • Max FLow Rate: 74 GPM
  • Max Solids Size: 0.25
  • Outlet Size: 2
  • Outlet Connection Type: NPT
  • Manifold Gasket:
  • Shipping Weight LBS: 172.00
  • Shipping Length IN: 25.79
  • Shipping Width IN: 11.75
  • Shipping Height IN: 24.87
  • Max Viscosity:
  • SKU: WREH2MTN4ISP
  • MPN: EH2M,TN4I.
  • Customs Code: HTS Code 8413.50.00.50
    Schedule B Code 8413.50.00.50
    HS Code 84131900
    ECCN Code EAR99
  • Seal Material:

TECHNICAL DOCUMENTS
