Home / Warren Rupp® Sandpiper® Pumps / Sandpiper® DMF2S,DB5A. DMF2 Bottom Discharge Metallic Flap Valve Pump

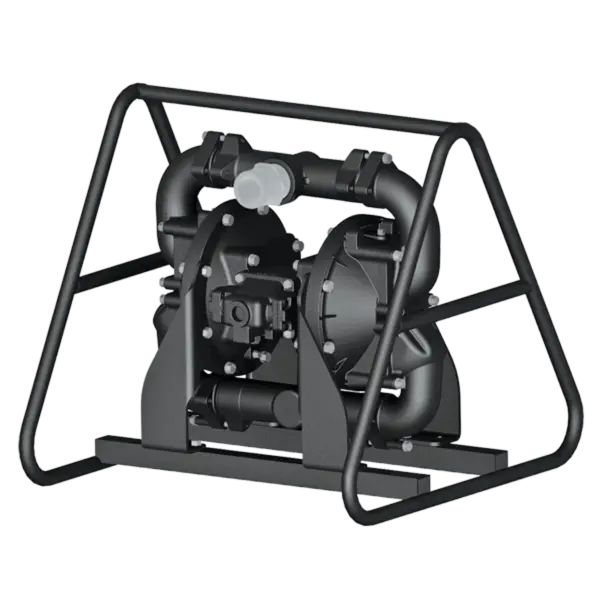

Sandpiper® DMF2S,DB5A. DMF2 Bottom Discharge Metallic Flap Valve Pump

Part Number: DMF2S,DB5A.
The actual product may vary from images shown
$5,200.00
QTY:


DMF2S,DB5A. DETAILS

Sandpiper® DMF2S,DB5A. 2" NPT DMF2 Bottom Discharge Metallic Flap Valve Pump

Driller's Mud Flap Pumps come equipped with heavy duty valve seats, plunger actuator, bushings and pilot valve. Cam lock fittings on all models roll cage or skid base options for pump durability and ease of transportation.

Recommended Accessories and Kits Sold Separately:

  • Sandpiper® 476.270.360 Wet End Kit
  • Sandpiper® 476.247.000 Air End Kit
  • Sandpiper® 020.105.000 Filter/Regulator
  • Sandpiper® 020.051.004 Replacement Filter Element
  • Sandpiper® 032.036.000. Pneumatic Liquid Level Control

DMF2S,DB5A. SPECS

  • Pump Type: Warren Rupp® Sandpiper® Pumps
  • Brand: SANDPIPER®
  • Wetted Material: AL
  • Non-Wetted Material: AL
  • Main Material:
  • Air Inlet Size: 0
  • Check Valve Seat: Yes
  • Check Valve Type:
  • Diaphragm Material: B
  • Porting Position:
  • Air Inlet Connection Type:
  • Displacement per Stroke (gal): 0.43
  • Ball Material:
  • Elastomers:
  • Inlet Size: 2
  • Inlet Connection Type: NPT
  • Max Air Inlet Pressure:
  • Max FLow Rate: 140 GPM
  • Max Solids Size: 2
  • Outlet Size: 2
  • Outlet Connection Type: NPT
  • Manifold Gasket:
  • Shipping Weight LBS: 86.00
  • Shipping Length IN: 18.50
  • Shipping Width IN: 32.00
  • Shipping Height IN: 26.04
  • Max Viscosity:
  • SKU: WRDMF2SDB5ASP
  • MPN: DMF2S,DB5A.
  • Customs Code: HTS Code 8413.50.00.50
    Schedule B Code 8413.50.00.50
    ECCN Code EAR99
  • Seal Material:
For domestic purchase only. Not for export.
