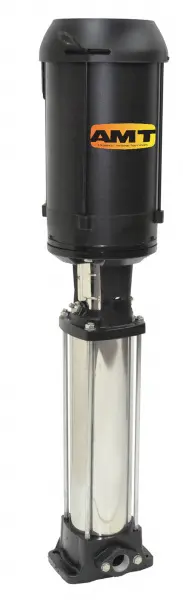

AMT® MSV3-5-3P Multistage Pump with 5 Stages

MSV3-5-3P Multistage Pump with 5 Stages

AMT® commercial/industrial centrifugal Pumps are non-self-priming (gravity feed) units designed to handle high-pressure low flow liquid transfer applications where no suction lift is required. Typical installations include: hot and chilled water, boiler feed, condensate return, irrigation, high pressure washdown, booster service, and fire protection/ sprinkler systems. This type of pump is often referred to as a Jockey Pump. Maximum inlet pressure is 335 Ft./145 PSI [1000 kPa].

Features:

• 304 Series Stainless steel components with teflon wear rings
• Cast iron base & adapter
• 1" NPT cast iron flanges
• Tungsten Carbide/Carbon seal with EPDM/EPR elastomers
• Seal features an easy replacement feature
• Optional ANSI/ASME 250# flange kit (Part# C590-90)

Pumps are interchangeable with Grundfos®® CR3 Series. These pumps have NOT been investigated for use in potable (drinking) water systems. Links to repair kits and optional equipment (where available) are located at the top and bottom of this page for your convenience.
* AMT® MSV3-5-3P
