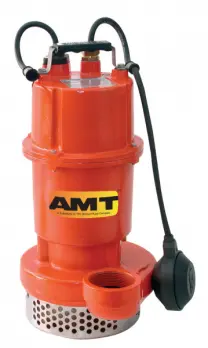

AMT® 5780-98 Submersible Drainage/Sump Utility Pump

Part Number: 5780-98
The actual product may vary from images shown
$926.25
QTY:


5780-98 DETAILS

AMT® 5780-98 Submersible Drainage/Sump Utility Pump (Drainage Type).

AMT® Submersible Sump Pumps are designed for many applications including sump pits, drainage pits, overflow tanks, basements, dewatering, excavation, grain elevators, construction drainage, cooling towers and other applications requiring clear water removal. AMT® Submersible Pump include thermal overload protector and suction screen.

Features:

  • Stainless steel construction
  • Built-in thermal protection
  • Tiplex seal system
    • Double mechanical seals: Carbon/Ceramic with Viton® elastomers
    • Plus shaft seal
  • UL/CSA Listed.
  • 1/2 HP, 115 VAC UL/SJT Cord with 3 prong plug
  • Clog resistant impellers
  • Oil filled, quiet run motor design
  • Carry handle built-in
  • Suction screen
  • Maximum temperature: 104 F

Links to repair kits and optional equipment (where available) are located at the top and bottom of this page for your convenience.
* AMT® 5780-98

5780-98 FEATURES

  • Triplex Seal System: Double Mechanical Seals Plus Shaft Seal
  • Stainless Steel Construction with Clog Resistant Impeller
  • Does Not Include Float Switch
  • Built-In Thermal Overload Protection
  • Oil Filled, Quiet Run Motor Design
  • UL/SJT Cord with 3 Prong Plug
  • 1/2 HP, 115 VAC/60 Hz, 5 Full Load Amps, Oil Filled, Quiet Run Motor

5780-98 SPECS

  • Pump Type: Submersible Drainage
  • Brand: AMT®
  • Shipping Weight LBS: 26
  • Shipping Length IN: 20
  • Main Material: Stainless Steel
  • Displacement per Stroke (gal):
  • Shipping Height IN: 16.3
  • SKU: AT578098SP
  • Engine Type:
  • MPN: 5780-98
  • Full Load Current: 5.0 A
  • Fuel Tank Capacity:
  • Customs Code: HTS Code 8413702004
    Schedule B Code 8413702004
    ECCN Code EAR99
  • Shipping Width IN: 6.3
  • Driver Type: Electric Motor
  • Outlet Size: 2
  • Inlet Size:
  • Elastomers: FKM
  • Motor Frame:
  • Outlet Connection Type: FNPT
  • Model #:
  • Inlet Connection Type:
  • Max Solids Size:
  • Porting Position:

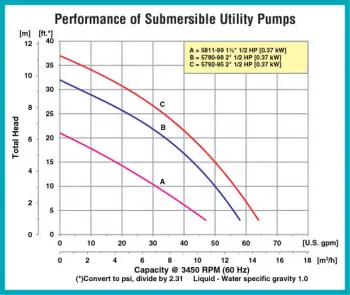

  • Max FLow Rate: 58 GPM
  • Power: 0.5
  • Run Time:
  • RPM:
  • Seal Material: Carbon/Ceramic Double Mechanical Plus Shaft Seal, FKM Elastomers
  • Max Discharge Pressure: 13.9
