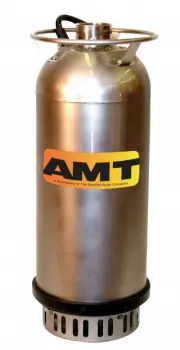

AMT® 5771-95 Submersible Contractor Pump

Part Number: 5771-95
The actual product may vary from images shown
$1,482.00
QTY:


5771-95 DETAILS

AMT® 5771-95 Submersible Contractor Pump.

AMT® Submersible contractor pumps are intended for use in residential, commercial and industrial settings. Applications include: construction sites, waste water, storm water, farming, irrigation, excavation, mining, marine, basement and other general drainage applications involving sediment laden liquids with solids up to 3/8" in diameter. Self-cleaning impeller featuring abrasion resistant high chromium steel construction for durability. Pumps have a 3450 RPM electric motor fitted with an unfinished power cord that requires field wiring (no controls are supplied). Motors are rated continuous duty.

Features:

  • Cast iron with stainless steel motor housing
  • Hi Chromium (HCr) steel impeller and cover for wear resistance and durability
  • Superior motor design for quiet, low noise operation
  • Silicon carbide mechanical seal plus shaft seal
  • UL/CSA Listed
  • 32' power cord (no plug)
  • Suction screen
  • Carrying handle
  • Maximum temperature: 104 F
  • Maximum solids size up to 3/8"

Links to repair kits and optional equipment (where available) are located at the top and bottom of this page for your convenience.
* AMT® 5771-95

5771-95 FEATURES

  • Cast Iron with Stainless Steel Motor Housing with Hi Chromium (HCr) Steel Impeller and Cover for Wear Resistance and Durability
  • Hi Chromium (HCr) Steel Impeller and Cover for Wear Resistance and Durability
  • SiC/SiC Mechanical Seals Plus Shaft Seal
  • Superior Motor Design for Quiet, Low Noise Operation
  • Suction Screen, Carrying Handle and 32 Ft Cord (no plug) Included
  • Maximum Solids Size: 3/8"
  • UL/CSA Listed
  • 1 HP , Single Phase, 230 VAC/60 Hz, 7 Full Load Amps Motor (UL/CSA Listed)

5771-95 SPECS

  • Pump Type: Submersible Contractor
  • Brand: AMT®
  • Shipping Weight LBS: 51
  • Shipping Length IN: 8.3
  • Main Material: Cast Iron
  • Displacement per Stroke (gal):
  • Shipping Height IN: 19.3
  • SKU: AT577195SP
  • Engine Type:
  • MPN: 5771-95
  • Full Load Current:
  • Fuel Tank Capacity:
  • Customs Code: HTS Code 8413702004
    Schedule B Code 8413702004
    ECCN Code EAR99
  • Shipping Width IN: 8.3
  • Driver Type: Electric Motor
  • Outlet Size: 2
  • Inlet Size:
  • Elastomers: Buna-N
  • Motor Frame:
  • Outlet Connection Type: FNPT
  • Model #:
  • Inlet Connection Type:
  • Max Solids Size: 0.375
  • Porting Position:
  • Max FLow Rate: 90 GPM
  • Power: 1
  • Run Time:
  • RPM: 3450
  • Seal Material: Silicon Carbide/Silicon Carbide Mechanical Seal, Buna -N Elastomers
  • Max Discharge Pressure: 20.8
