AMT® 5351-95 Suction-Type, Self-Priming Coolant Pump, Interchangeable

Part Number: 5351-95
The actual product may vary from images shown
$451.50
QTY:


5351-95 DETAILS

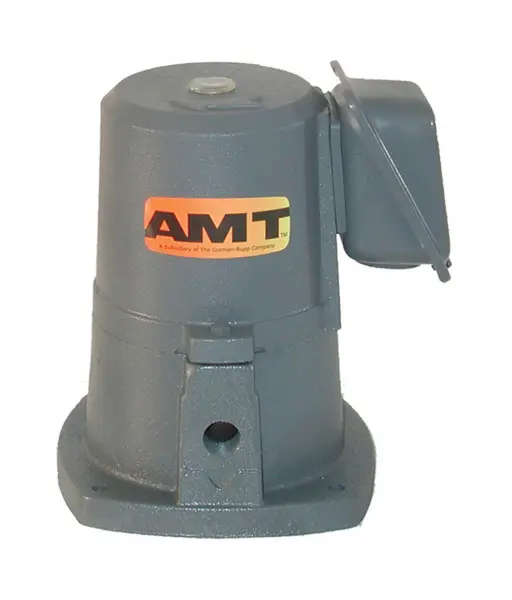

AMT® 5351-95 Suction Type Coolant Pump.

The AMT® Interchangeable Coolant/Oil Pumps are dependable, economical replacement pumps equivalent to units supplied with both domestic and foreign made machine tools such as Fuji, Mitsubishi, Toshiba, Hitachi and many others. These pumps are designed for the circulation and spraying of coolants and cutting oils. Suction-type pumps must be mounted above the liquid level as well as other remote locations, featuring a 2 ft. maximum suction lift. For circulating coolant, liquids with large amounts of foreign matter and spraying cutting oil in all types of machines, except grinders. Pumps feature Totally Enclosed motors with sealed, permanently lubricated bearing for protection from dirt, moisture and soil. Pumps feature semi-open impellers that are ideal for handling some solids and fine contaminants.

  • Cast iron construction
  • Stainless steel impeller
  • Carbon steel shaft
  • Carbon/Ceramic shaft seal
  • Self-priming up to 2' (maximum suction lift)
  • Pump must be mounted above liquid

Interchangeable with Grainger Part # 4XZ19; Dayton Part # 3P741, 3GRU9; Teel Part # 3P741, 3GRU9


* AMT® 5351-95

5351-95 FEATURES
  • Cast Iron Construction with Stainless Steel Impeller and Carbon Steel Shaft
  • Carbon/Ceramic Shaft Seal
  • Self-Priming up to 2' -Maximum Suction Lift
  • Pumps Must be Mounted Above Liquid
  • Direct Replacement for Pumps Inside Domestic and Foreign Made Machine Tools, Including: Fuji, Mitsubishi, Toshiba, Hitachi, Yasukawa, Graymills and Gusher

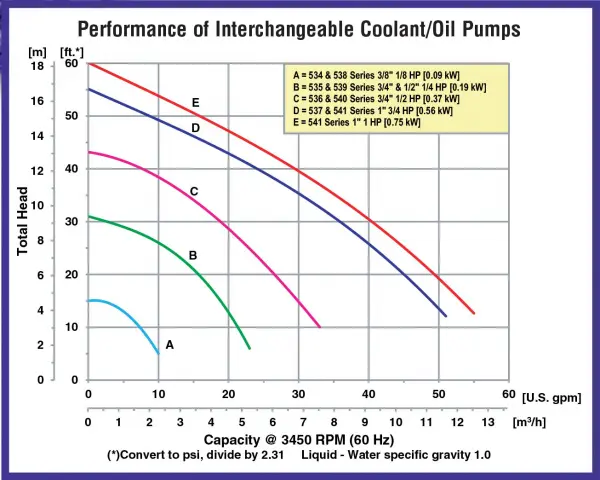

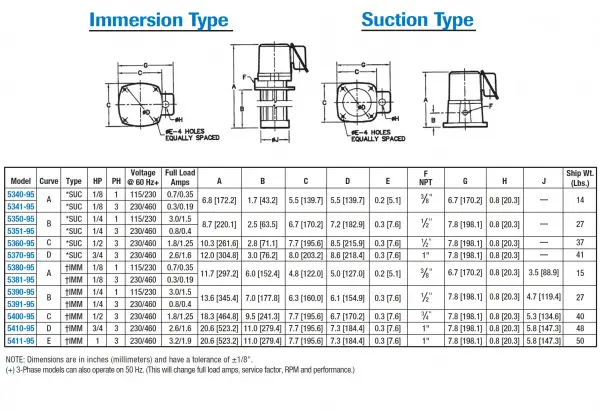

  • See Images for OEM Cross Reference List

5351-95 SPECS

  • Pump Type: Suction Type Coolant Pump
  • Brand: AMT®
  • Shipping Weight LBS: 27
  • Shipping Length IN: 8
  • Main Material: Cast Iron
  • Displacement per Stroke (gal):
  • Shipping Height IN: 15
  • Engine Type:
  • SKU: AT535195SP
  • MPN: 5351-95
  • Full Load Current:
  • Fuel Tank Capacity:
  • Customs Code: HTS Code 8413702005
    Schedule B Code 8413702005
    ECCN Code EAR99
  • Driver Type: Electric Motor
  • Shipping Width IN: 8
  • Outlet Size: 0.5
  • Inlet Size:
  • Elastomers:
  • Model #:
  • Motor Frame:
  • Outlet Connection Type: FNPT
  • Porting Position:
  • Inlet Connection Type:
  • Max Solids Size:
  • Run Time:
  • Max FLow Rate: 23 GPM
  • Power: 0.25
  • RPM: 3450
  • Seal Material: Carbon/Ceramic Mechanical Seal
  • Max Discharge Pressure: 13.4
