AMT® 5239-97 Industrial/Residential Sump Pump, 29" Height

Part Number: 5239-97
The actual product may vary from images shown
$786.00
QTY:


5239-97 DETAILS

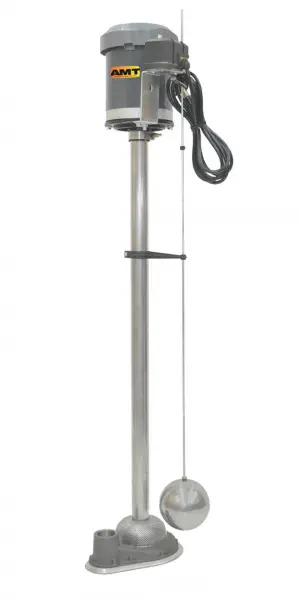

AMT® 5239-97 Industrial/Residential Sump Pump.

The AMT® line of Industrial/Commercial Sump Pump is designed for heavy duty commercial applications, as well as residential use where a combination of durability and high performance is required. AMT® Sump Pump in cast iron construction with 1/2 HP TEFC (Totally Enclosed, Fan Cooled), 1 Phase, 115 VAC/60 Hz, 9/5 Full Load Amps Motor for most applications. Motor is fitted with automatic switch and an 8 foot 16/3 115 VAC line cord. All models include stainless steel shaft, screen and float. Pumps require a minimum sump pit of 14" diameter and 24" depth.

Features:

  • Cast bronze construction with stainless steel impeller
  • Stainless steel screen and float
  • Carbon bearings
  • Semi-open, clog resistant impeller
  • Totally Enclosed Fan Cooled (TEFC) motor
  • Maximum temperature: 200 F

Links to repair kits and optional equipment (where available) are located at the top and bottom of this page for your convenience.

Interchangeable with Grainger Part # 3P545, 3XU85


* AMT® 5239-97

5239-97 FEATURES

  • Bronze Construction with Semi-Open, Clog Resistant Impeller
  • Stainless Steel Screen, Shaft & Float and Carbon Bearings Included
  • Solids Handling Design up to 3/4" Diameter (25% Maximum Solids)
  • 29" Column Height
  • 1/3 HP TEFC (Totally Enclosed, Fan Cooled), Single Phase, 115 VAC/60 Hz, 7/4 Full Load Amps Motor

5239-97 SPECS

  • Pump Type: Industrial/Commercial Sump
  • Brand: AMT®
  • Shipping Weight LBS: 37
  • Shipping Length IN: 11
  • Main Material: Bronze
  • Displacement per Stroke (gal):
  • Shipping Height IN: 29
  • Engine Type:
  • SKU: AT523997SP
  • MPN: 5239-97
  • Full Load Current:
  • Fuel Tank Capacity:
  • Customs Code: HTS Code 8413702005
    Schedule B Code 8413702005
    ECCN Code EAR99
  • Driver Type: Electric Motor
  • Shipping Width IN: 11
  • Outlet Size: 1.5
  • Inlet Size:
  • Elastomers:
  • Model #:
  • Motor Frame:
  • Outlet Connection Type: FNPT
  • Porting Position:
  • Inlet Connection Type:
  • Max Solids Size:
  • Run Time:
  • Max FLow Rate: 55 GPM
  • Power: 0.33
  • RPM: 1725
  • Seal Material: Sealless
  • Max Discharge Pressure: 8.69999999999999
