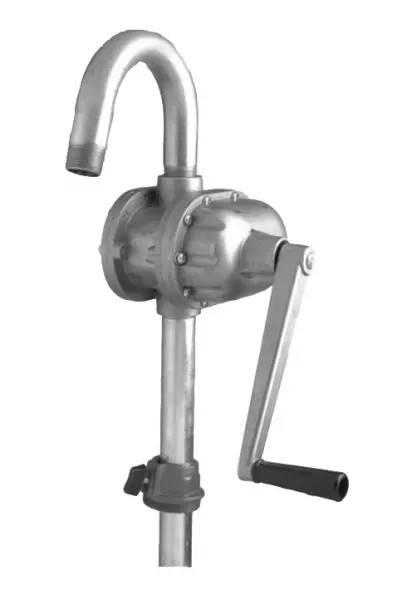

AMT® 5150-96 Lobe Drum Pump with Steel Lobes, 29 oz. per Stroke

Part Number: 5150-96
The actual product may vary from images shown
$145.50
QTY:


5150-96 DETAILS

AMT® 5150-96 Rotary Drum Pump

High Flow Rotary Drum pump is designed for high volume transfer and dispensing of many lubricating oil and non-corrosive light liquids other than water, which are compatible with pump component materials. Liquids must be free of debris and any solids for proper operation.

Includes discharge spout, bung adapter and suction tube assembly.

  • 16 GPM @ 70 RPM (29 oz./Stroke)
  • Cast Aluminum Construction with Cast Iron and Steel Components
  • Suction Strainer Included
  • 1" NPT Steel Discharge Spout
  • 1" NPT x 40" Suction Tube Assembly
  • 2" Cast Iron Bung Adapter

Interchangeable with Grainger Part # 2P363, 4HA35

5150-96 FEATURES
  • Cast Aluminum Construction with Cast Iron & Steel Components, Buna-N Seal & Fiber Gaskets
  • 16 GPM @ 70 RPM (29 oz./Stroke)
  • Maximum Temperature: 160 F
  • Suction Strainer Included
  • 1" NPT Steel Discharge Spout
  • 1" NPT x 40" Suction Tube Assembly
  • 2" Cast Iron Bung Adapter
  • For high volume transfer & dispensing of lubricating oil and non-corrosive light liquids
  • Not for use with water

5150-96 SPECS

  • Pump Type: Rotary Drum
  • Brand: AMT®
  • Shipping Weight LBS: 14
  • Shipping Length IN: 14
  • Main Material: Aluminum
  • Displacement per Stroke (gal):
  • Shipping Height IN: 8
  • SKU: AT515096SP
  • Engine Type:
  • MPN: 5150-96
  • Full Load Current:
  • Fuel Tank Capacity:
  • Customs Code: HTS Code 8413702005
    Schedule B Code 8413702005
    ECCN Code EAR99
  • Shipping Width IN: 9
  • Driver Type: Hand Powered
  • Outlet Size: 1
  • Inlet Size: 1
  • Elastomers: Buna-N
  • Motor Frame:
  • Outlet Connection Type: Fill Spout
  • Model #:
  • Inlet Connection Type: Smooth
  • Max Solids Size:
  • Porting Position:
  • Max FLow Rate: 16 GPM
  • Power:
  • Run Time:
  • RPM:
  • Seal Material: Carbon/Ceramic Mechanical Seal, Buna -N Elastomers
  • Max Discharge Pressure:
