AMT® 4946-99 Rotary Drum Pump, 11 Oz. per Stroke

Part Number: 4946-99
The actual product may vary from images shown
$120.75
QTY:


4946-99 DETAILS

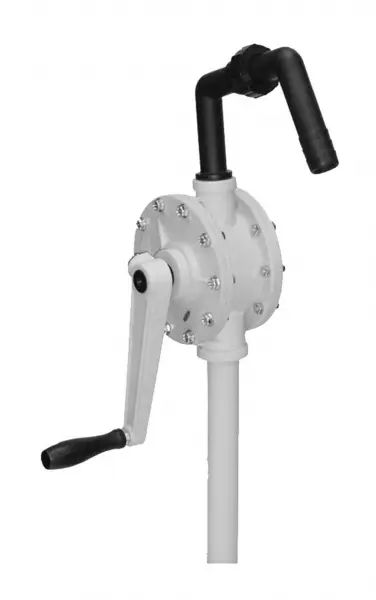

AMT® 4946-99 Rotary Drum Pump

The polypropylene drum pump is designed for the transfer and dispensing of many organic acids, alcohols and other water soluble inorganic chemicals, which are compatible with pump component materials. Liquids must be free of debris and any solids for proper operation.

Includes discharge spout, bung adapter and suction tube assembly.

  • 6 GPM @ 70 RPM (11 oz./Stroke)
  • Polypropylene Construction with Ryton Rotor and Vanes
  • 1" O.D. Ryton Discharge Spout Assembly
  • 1" I.D. x 40" Ryton Suction Tube Assembly
  • 2" Bung Adapter

Interchangeable with Dayton Part # 1N417; Teel Part # 1N417

4946-99 FEATURES
  • Polypropylene Construction with Ryton Rotor and Vanes with Teflon Seal
  • 6 GPM @ 70 RPM (11 oz./Stroke)
  • Maximum Temperature: 130 F
  • 1" O.D. Ryton Discharge Spout Assembly; 1" I.D. x 45" Ryton Suction Tube Assembly
  • 2" Bung Adapter
  • for the transfer and dispensing of many organic acids, alcohols & other H2O soluble inorganic chemicals

4946-99 SPECS

  • Pump Type: Rotary Drum
  • Brand: AMT®
  • Shipping Weight LBS: 5
  • Shipping Length IN: 7
  • Main Material: Polypropylene
  • Displacement per Stroke (gal):
  • Shipping Height IN: 16
  • SKU: AT494699SP
  • Engine Type:
  • MPN: 4946-99
  • Full Load Current:
  • Fuel Tank Capacity:
  • Customs Code: HTS Code 8413200000
    Schedule B Code 8413200000
    ECCN Code EAR99
  • Shipping Width IN: 7
  • Driver Type: Hand Powered
  • Outlet Size: 1
  • Inlet Size: 1
  • Elastomers: PTFE
  • Motor Frame:
  • Outlet Connection Type: Fill Spout
  • Model #:
  • Inlet Connection Type: Smooth
  • Max Solids Size:
  • Porting Position:
  • Max FLow Rate: 6 GPM
  • Power:
  • Run Time:
  • RPM:
  • Seal Material: PTFE Static Seal, PTFE Elastomers
  • Max Discharge Pressure:
