AMT® 4861-97 Straight Centrifugal Pump, 12 VDC

Part Number: 4861-97
The actual product may vary from images shown
$310.50
QTY:


4861-97 DETAILS

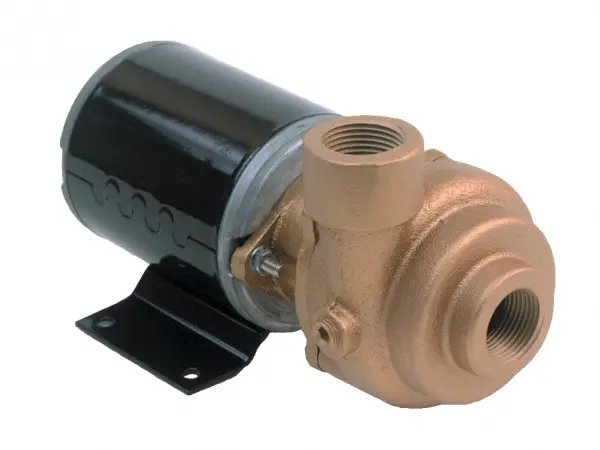

AMT® 4861-97 3/4" Naval Bronze Marine Pump.

The AMT® Model 4861-97 Bronze Centrifugal pump is compact and designed for use in general dewatering, salt water applications in live well tanks, circulation and chemical transfer. This pump is fitted with a 1/8 HP TENV (Totally Enclosed, Non-Ventilated), 12 Volt DC, 9 Full Load Amps, 3700 RPM motor. Handles up to 3/16" solids. Pumps are not self-priming and require flooded suction/positive suction pressure.

Interchangeable with Dayton Part # 4P062; Teel Part # 4P062


* AMT® 4860-97
Identical specs and alternate to AMT® 4861-97

4861-97 FEATURES
  • Pump Has Been Sized for Salt Water (1.03 Specific Gravity)
  • Pump is fitted with a 1/12 HP Capacitor Start, TENV, 12 Volt DC, 3700 RPM Motor
  • Naval Bronze Construction with Self-Cleaning, Semi-Open Impeller
  • Carbon/Ceramic Buna-N Mechanical Seal and O-Ring
  • Pull-From-Rear Design for Easy Servicing
  • Provisions for Installation of Seal Wash
  • Front Drain Plug
  • Pump is NOT self-priming and requires a flooded suction/positive suction pressure.

4861-97 SPECS

  • Pump Type: Bronze Marine Centrifugal
  • Brand: AMT®
  • Shipping Weight LBS: 7.00
  • Shipping Length IN: 7.60
  • Main Material: Bronze
  • Displacement per Stroke (gal):
  • Shipping Height IN: 4.00
  • SKU: AT486197SP
  • Engine Type:
  • MPN: 4861-97
  • Full Load Current: 9
  • Fuel Tank Capacity:
  • Customs Code: HTS Code 8413702005
    Schedule B Code 8413702005
    ECCN Code EAR99
  • Shipping Width IN: 3.30
  • Driver Type: Electric Motor
  • Outlet Size: 0.75
  • Inlet Size: 0.75
  • Elastomers: Buna-N
  • Motor Frame:
  • Outlet Connection Type: FNPT
  • Model #:
  • Inlet Connection Type: FNPT
  • Max Solids Size: 0.19
  • Porting Position:
  • Max FLow Rate: 17 GPM
  • Power: 0.13
  • Run Time:
  • RPM: 3700
  • Seal Material: Carbon/Ceramic Mechanical Seal, Buna -N Elastomers
  • Max Discharge Pressure: 5.2
