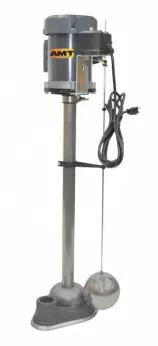

AMT® 4020-95 Industrial, Solids Handling Sump Pump, 32" High

Part Number: 4020-95
The actual product may vary from images shown
$673.50
QTY:


4020-95 DETAILS

AMT® 4020-95 Industrial/Solids Handling Sump Pump.

The AMT® line of Industrial/Commercial Sump Pump is designed for heavy duty commercial applications, as well as residential use where a combination of durability and high performance is required. AMT® Sump Pump in cast iron construction with 1/2 HP TEFC (Totally Enclosed, Fan Cooled), 1 Phase, 115 VAC/60 Hz, 9/5 Full Load Amps Motor for most applications. Motor is fitted with automatic switch and an 8 foot 16/3 115 VAC line cord. All models include stainless steel shaft, screen and float. Pumps require a minimum sump pit of 14" diameter and 24" depth.

Features:

  • Cast iron construction with stainless steel impeller
  • Stainless steel screen and float
  • Carbon bearings
  • Semi-open, clog resistant impeller
  • Totally Enclosed Fan Cooled (TEFC) motor
  • Handles up to 3/4" solids at 25% maximum concentration
  • Maximum temperature: 200 F

Links to repair kits and optional equipment (where available) are located at the top and bottom of this page for your convenience.

Interchangeable with Grainger Part # 3P546, 3XU83


* AMT® 4020-95

4020-95 FEATURES

  • Cast Iron Construction with Semi-Open, Clog Resistant Impeller
  • Stainless Steel Screen, Shaft & Float and Carbon Bearings Included
  • Solids Handling Design up to 3/4" Diameter (25% Maximum Solids)
  • 32" Column Height
  • 1/2 HP TEFC (Totally Enclosed, Fan Cooled), Single Phase, 115 VAC/60 Hz, 9/5 Full Load Amps, Frame Motor

4020-95 SPECS

  • Pump Type: Industrial/Commercial Sump
  • Brand: AMT®
  • Shipping Weight LBS: 50
  • Shipping Length IN: 12.6
  • Main Material: Cast Iron
  • Displacement per Stroke (gal):
  • Shipping Height IN: 32
  • Engine Type:
  • SKU: AT402095SP
  • MPN: 4020-95
  • Full Load Current:
  • Fuel Tank Capacity:
  • Customs Code: HTS Code 8413702005
    Schedule B Code 8413702005
    ECCN Code EAR99
  • Driver Type: Electric Motor
  • Shipping Width IN: 12.6
  • Outlet Size: 2
  • Inlet Size:
  • Elastomers:
  • Model #:
  • Motor Frame:
  • Outlet Connection Type: FNPT
  • Porting Position:
  • Inlet Connection Type:
  • Max Solids Size: 0.375
  • Run Time:

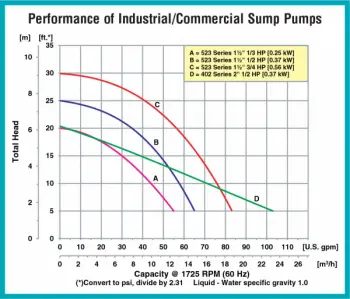

  • Max FLow Rate: 103 GPM
  • Power: 0.5
  • RPM: 1725
  • Seal Material: Sealless
  • Max Discharge Pressure: 9.1
