AMT® 3S9XLR 3" 8 HP Self-Priming Engine Driven Trash Pumps

Part Number: 3S9XLR

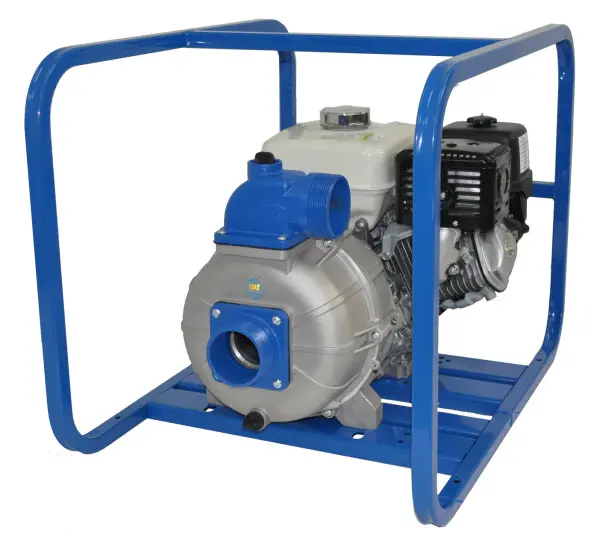

The actual product may vary from images shown
$1,671.00
QTY:


3S9XLR DETAILS

AMT® 3S9XLR 3" 8 HP Self-Priming Engine Driven Trash Pumps

IPT 3" Engine Driven Portable High Pressure pumps are cast aluminum construction with cast iron volute and male NPT ports. Pump applications include fire protection and irrigation. These pumps are available with a wide choice of standard and heavy duty gasoline or diesel fueled engines. These pumps feature high efficiency closed cast aluminum impeller. All models come equipped with EPDM/EPR elastomers and seals. Most models include a heavy duty steel roll frame.

3S9XLR FEATURES

  • Cast Aluminum Construction with Cast Iron Diffusers
  • EPDM/EPR Mechanical Seals
  • Optional FKM Seal and Elastomers Available
  • 3" Cast Iron Suction & Discharge Male NPT Port Sizes
  • Maximum Flow up to 185 GPM
  • Maximum Head up to 89 PSI
  • Maximum Lift to 26 Ft.
  • One Tool Serviceability
  • Utilized for Fire Protection or Irrigation
  • Discharge Port Rotates in 90° Increments
  • Engine Options
  • Optional High Pressure Hose Kit and Wheel Kit Available

3S9XLR SPECS

  • Pump Type: Self-Priming Trash Centrifugal
  • Brand: AMT®
  • Shipping Weight LBS: 145
  • Shipping Length IN: 31
  • Main Material: Aluminum Diecast
  • Displacement per Stroke (gal):
  • Shipping Height IN: 23.6
  • Engine Type: LCT® 306CC
  • SKU: AT3S9XLRSP
  • MPN: 3S9XLR
  • Full Load Current:
  • Fuel Tank Capacity: .95/3.6, not qt
  • Customs Code:
  • Driver Type:
  • Shipping Width IN: 22.5
  • Outlet Size: 3
  • Inlet Size: 3
  • Elastomers: FKM
  • Model #:
  • Motor Frame:
  • Outlet Connection Type: NPT
  • Porting Position:
  • Inlet Connection Type: NPT
  • Max Solids Size: 1.25
  • Run Time: 132.00 min
  • Max FLow Rate:
  • Power: 8
  • RPM:
  • Seal Material:
  • Max Discharge Pressure:
