3S5XHR Self-Priming Trash Centrifugal Pump

Part Number: 3S5XHR
The actual product may vary from images shown
$1,407.00
QTY:


3S5XHR DETAILS

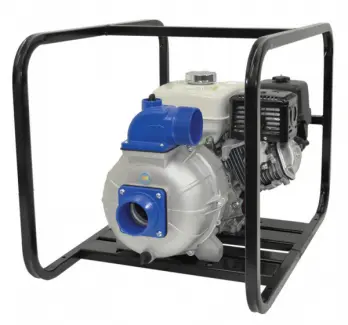

IPT® 3S5XHR Self-Priming Centrifugal Trash Pump.

IPT® portable high volume, self-priming centrifugal trash pumps come standard with a cast iron impeller to resist abrasion and one tool serviceability for easy clean-out. Silicon Carbide mechanical seal with graphite impregnated seat and Viton® Elastomers. Removable, heavy duty cast iron flanges with male NPT threads that rotate in 90 degree increments. Handles up to 1 1/4" solids. Pedestal versions (bare shaft pump) for long coupling to electric motors are also available.

Features:

  • Self-Primes to 26 ft with built in check valve
  • Handles up to 1 1/4" Solids
  • SiC/Car Seal w/ Viton® Elastomers
  • EPDM/EPR O-Rings
  • Heavy duty steel roll frame included
  • Aluminum housing
  • Cast iron impeller and wear parts
  • Built-in check valve
  • Suction strainer
  • Easy access fill plug on discharge port
  • One Tool Serviceability- Tool Included
  • Vibration Dampening Feet

Optional Equipment:

Viton® O-Ring and Check Valve Installed at Factory (Seal not included- pump already equiped with SiC/Car Seal
Wheel Kit
See Optional Equipment Links at the Top and Bottom of the Page!
* IPT® 3S5XHR

3S5XHR FEATURES
  • Cast Aluminum Construction with Cast Iron Wear Parts
  • SiC/SiC Viton® Mechanical Seal with EPDM/EPR O-Rings
  • Self-Priming to 26 Ft. with Built in EPDM/EPR Check Valve
  • Removable Male NPT Suction & Discharge Ports Rotate in 90 Degree Increments
  • Easy Clean Out with One Tool Serviceability
  • Maximum Solids Size: 1"
  • Heavy Duty Steel Roll Frame Included
  • Optional Viton® O-Ring / Check Valve and 10" Semi-Pneumatic Wheel Kit Available (C402-90)

3S5XHR SPECS

  • Pump Type: Self-Priming Centrifugal
  • Brand: IPT®
  • Shipping Weight LBS: 100
  • Shipping Length IN: 24
  • Main Material: Aluminum Diecast
  • Displacement per Stroke (gal):
  • Shipping Height IN: 19.9
  • SKU: AT3S5XHRSP
  • Engine Type: Honda GX160 OHV
  • MPN: 3S5XHR
  • Full Load Current:
  • Fuel Tank Capacity: 3.28 qt
  • Customs Code: HTS Code 8413702015
    Schedule B Code 8413702015
    ECCN Code EAR99
  • Shipping Width IN: 19.5
  • Driver Type: Gasoline Engine
  • Outlet Size: 3
  • Inlet Size: 3
  • Elastomers: FKM
  • Motor Frame:
  • Outlet Connection Type: MNPT
  • Model #:
  • Inlet Connection Type: MNPT
  • Max Solids Size: 1.25
  • Porting Position:
  • Max FLow Rate: 290 GPM
  • Power: 5
  • Run Time: 150.00 min
  • RPM:
  • Seal Material: Silicon Carbide/Silicon Carbide Mechanical Seal, FKM Elastomers
  • Max Discharge Pressure: 47.6
