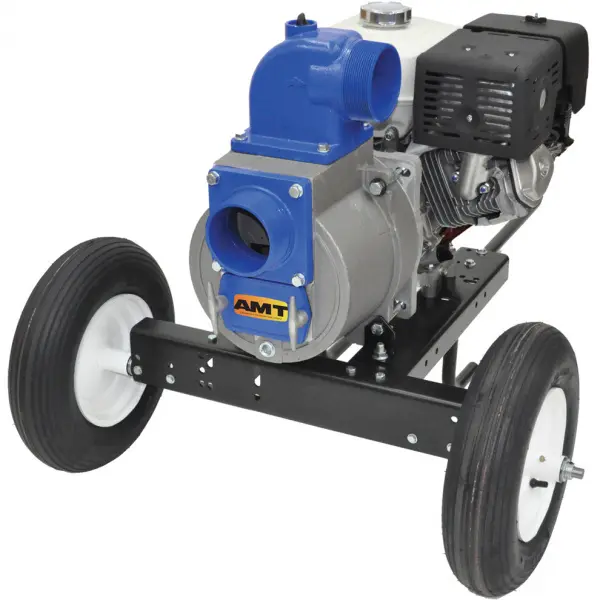

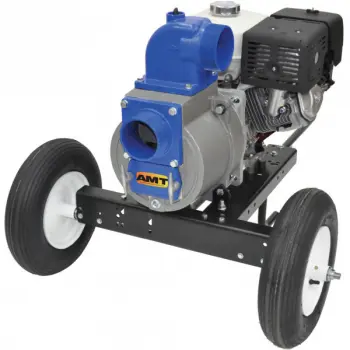

AMT® 3994-96 Self-Priming Premium Trash Centrifugal Pump

Part Number: 3994-96
The actual product may vary from images shown
$4,432.50
QTY:


3994-96 DETAILS

AMT® 3994-96 Premium Self-Priming Centrifugal Trash Pump.

AMT® engine driven trash pumps are designed for applications which require high flow efficiency and solids handling capability. These pumps are constructed of heavy duty sand cast aluminum components featuring removable/replaceable cast iron volutes, impellers and wear plates. Simple clean-out design permits easy removal of trash and debris without disconnecting hoses. Cast iron discharge port rotates in 90 Degree Increments.

  • Self-primes to 20 Feet with built-in buna check valve
  • SiC/Car seal w/ Viton® elastomers
  • Cast iron replaceable volute/wearplate and impeller
  • Stainless steel shaft sleeve
  • Steel suction strainer included
  • Maximum temperature: 180 F
  • Maximum working pressure: 75 PSI
  • Base rails and wheel kit included
Optional Wheel Kit for ease of portability. See Optional Equipment Links at the Top and Bottom of the Page!

Interchangeable with Grainger Part # 3P955


* AMT® 3994-96

3994-96 FEATURES

  • Cast Aluminum with Cast Iron Wear Parts
  • SiC/SiC Viton® Mechanical Seal with Buna-N O-Ring & Casing Seal and SS Shaft Sleeve
  • Stainless Steel Shaft Sleeve
  • Cast Iron Replaceable Volute/Wear plate and Impeller
  • Self-primes to 20 Feet with Built-In Buna Check Valve
  • 2" Max Solids Size
  • Steel Suction Strainer, Wheel Kit and Base Rails Included

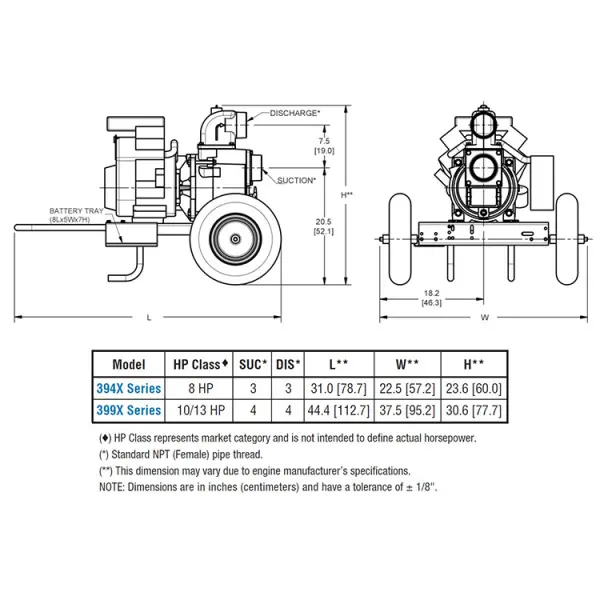

3994-96 SPECS

  • Pump Type: Self-Priming Centrifugal
  • Brand: AMT®
  • Shipping Weight LBS: 300
  • Shipping Length IN: 44.4
  • Main Material: Cast Aluminum w/Iron
  • Shipping Height IN: 30.6
  • SKU: AT399496SP
  • Engine Type: Honda GX390 OHV
  • MPN: 3994-96
  • Customs Code: HTS Code 8413702015
    Schedule B Code 8413702015
    ECCN Code EAR99
  • Fuel Tank Capacity: 6.40 qt
  • Driver Type: Gasoline Engine
  • Shipping Width IN: 37.5
  • Outlet Size: 4
  • Inlet Size: 4
  • Elastomers: FKM
  • Outlet Connection Type: MNPT
  • Inlet Connection Type: MNPT
  • Max Solids Size: 2
  • Run Time: 150.00 min

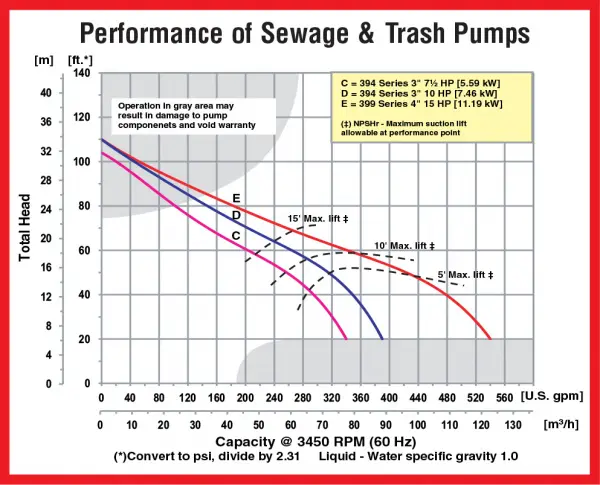

  • Max FLow Rate: 540 GPM
  • Power: 13
  • Seal Material: Silicon Carbide/Silicon Carbide Mechanical Seal, FKM Elastomers
  • Max Discharge Pressure: 45
