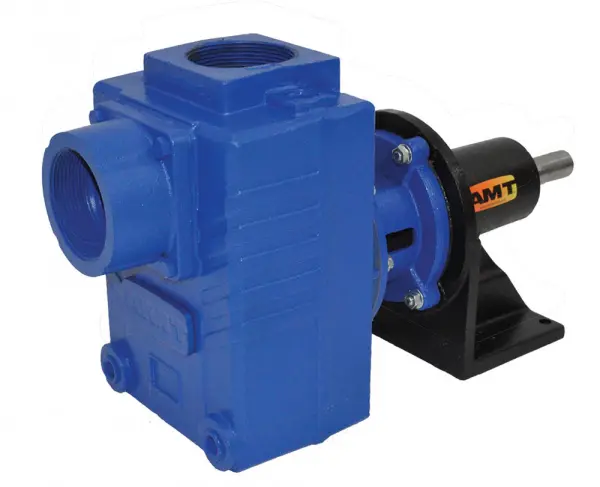

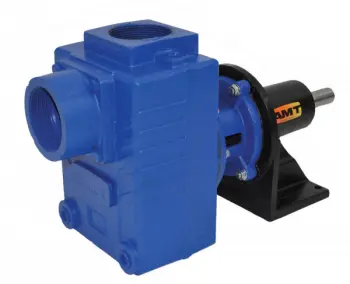

AMT® 3993-99 Self-Priming Solids Handling Centrifugal Pump with Bearing Pedestal

AMT® 3993-99 Self-Priming Solids Handling Pedestal Pump, 15 HP Minimum Required at 3600 RPM.

AMT® Self-Priming Solids Handling Pedestal Pumps are designed for direct or belt drive. This unit features 2" solids handling construction and is fitted with a cast iron bearing housing, which contains three precision sealed ball bearings. Easy clean-out design featuring a clean-out cover with quick release handles for removal of debris.

Features:

• Cast aluminum construction with cast iron wear parts and front clean-out
• Carbon/Ceramic seal with Buna-N elastomers
• Buna-N check valve and o-rings
• Self-priming to 20 Ft. with built-in check valve
• Optional SiC/SiC seal with Viton® elastomers
• Solids handling capability: 2"
• Maximum working pressure: 75 PSI
• Maximum temperature: 180 F
• Trash pump
• Heavy duty cast iron bearing housing containing (3) precision sealed ball bearings
• 3/4" Diameter CNC Machined Shaft with 2-1/4" x 1/4" x 1/8" Keyway.

This unit does NOT come with a motor/engine

Links to repair kits and optional equipment (where available) are located at the top and bottom of this page for your convenience.
* AMT® 3993-99
