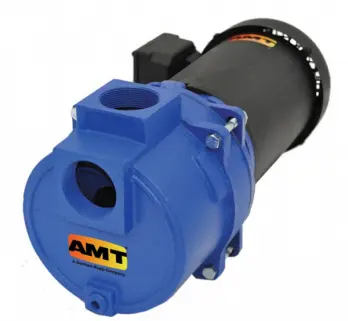

AMT® 393B-95 Self-Priming Sewage/Trash Centrifugal Pump

Part Number: 393B-95
The actual product may vary from images shown
$2,317.50
QTY:


393B-95 DETAILS

AMT® 393B-95 Self-Priming Sewage/Trash Pump.

AMT® Cast Iron Sewage/Trash Pumps are designed for trouble free and economical handling of solids laden liquids and slurries. Cast iron construction with two vane stainless steel self-cleaning impellers, silicon carbide mechanical seals for abrasion resistance and Buna-N o-rings and check valves. The built-in check valve allows pump to re-prime automatically in an open system without the foot valve. The solids handling capabilities of the pumps make them ideally suited for a variety of industrial applications including: sewage treatment, canneries, chemical processing, wineries, tanneries, meat packing, breweries, pulp, wood chips, process water, sludge and slime, waste water, white water and other applications. These sewage/trash pump will easily handle liquids containing sewage, stones, sticks, mud and other solids. Buna-N o-ring casing seal is re-usable after clean out maintenance. Self-cleaning stainless steel impeller resists clogging and wear. Pull-from-rear design permits clean out and repair without removing piping.

Features:

  • Cast iron construction
  • SiC/SiC seal with Viton® elastomers
  • Stainless steel semi-open, clog resistant impeller
  • Buna-N check valve and o-ring
  • Self-priming to 20 Ft. with built-in check valve
  • Removable cast iron volute/wearplate
  • Easy clean-out design
  • Pull-from-rear design
  • Totally Enclosed Fan Cooled (TEFC) motor
Hazardous Duty/Xplosion Proof motors available from stock ranging from 1 to 10 HP.

Note: Minimum liquid requirement must be above 85% with a maximum of 15% solids. Failure to do so may damage pump & void warranty.

Interchangeable with Grainger Part # 4XX81


* AMT® 393B-95

393B-95 FEATURES

  • Cast Iron Construction with Stainless Steel, Self-Cleaning, Semi-Open Impeller
  • Self-Primes to 20 Ft with Built-In Check Valve
  • SiC/SiC Viton® Mechanical Seal with Buna-N O-Ring and Check Valve
  • Removable Cast Iron Volute/Wear plate
  • Easy Cleanout with Pull-From Rear Design
  • Minimum Liquid Requirement Must be Above 85%- Max 15% Solids (Failure to Do So May Damage Pump and Void Warranty)

393B-95 SPECS

  • Pump Type: Self-Priming Sewage & Trash Centrifugal
  • Brand: AMT®
  • Shipping Weight LBS: 189
  • Shipping Length IN: 27.4
  • Main Material: Cast Iron
  • Displacement per Stroke (gal):
  • Shipping Height IN: 10
  • Engine Type:
  • SKU: AT393B95SP
  • MPN: 393B-95
  • Full Load Current:
  • Fuel Tank Capacity:
  • Customs Code: HTS Code 8413702015
    Schedule B Code 8413702015
    ECCN Code EAR99
  • Driver Type: Electric Motor
  • Shipping Width IN: 13.4
  • Outlet Size: 2
  • Inlet Size: 2
  • Elastomers: FKM
  • Model #:
  • Motor Frame: 184JM
  • Outlet Connection Type: FNPT
  • Porting Position:
  • Inlet Connection Type: FNPT
  • Max Solids Size: 1
  • Run Time:
  • Max FLow Rate: 180 GPM
  • Power: 5
  • RPM: 3450
  • Seal Material: Silicon Carbide/Silicon Carbide Mechanical Seal, FKM Elastomers
  • Max Discharge Pressure: 47.6
