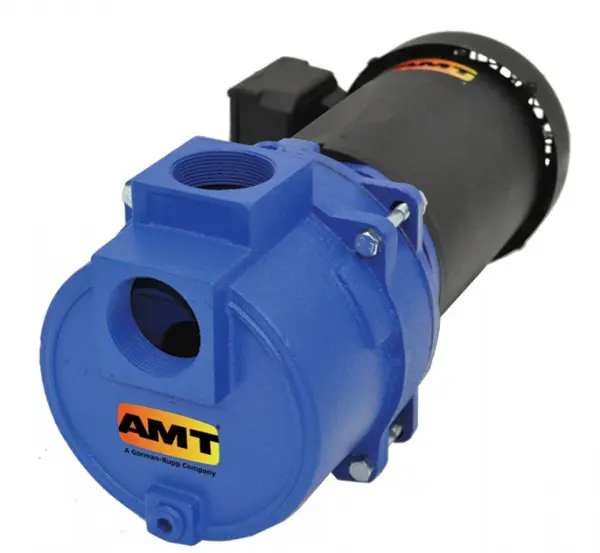

AMT® 393A-95 Self-Priming Sewage/Trash Centrifugal Pump

AMT® 393A-95 Self-Priming Sewage/Trash Pump.

AMT® Cast Iron Sewage/Trash Pumps are designed for trouble free and economical handling of solids laden liquids and slurries. Cast iron construction with two vane stainless steel self-cleaning impellers, silicon carbide mechanical seals for abrasion resistance and Buna-N o-rings and check valves. The built-in check valve allows pump to re-prime automatically in an open system without the foot valve. The solids handling capabilities of the pumps make them ideally suited for a variety of industrial applications including: sewage treatment, canneries, chemical processing, wineries, tanneries, meat packing, breweries, pulp, wood chips, process water, sludge and slime, waste water, white water and other applications. These sewage/trash pump will easily handle liquids containing sewage, stones, sticks, mud and other solids. Buna-N o-ring casing seal is re-usable after clean out maintenance. Self-cleaning stainless steel impeller resists clogging and wear. Pull-from-rear design permits clean out and repair without removing piping.

Features:

• Cast iron construction
• SiC/SiC seal with Viton® elastomers
• Stainless steel semi-open, clog resistant impeller
• Buna-N check valve and o-ring
• Self-priming to 20 Ft. with built-in check valve
• Removable cast iron volute/wearplate
• Easy clean-out design
• Pull-from-rear design
• Totally Enclosed Fan Cooled (TEFC) motor

Hazardous Duty/Xplosion Proof motors available from stock ranging from 1 to 10 HP.

Note: Minimum liquid requirement must be above 85% with a maximum of 15% solids. Failure to do so may damage pump & void warranty.

Interchangeable with Grainger Part # 4XX80; Dayton Part # 4YY38; Teel Part # 4YY38

* AMT® 393A-95
