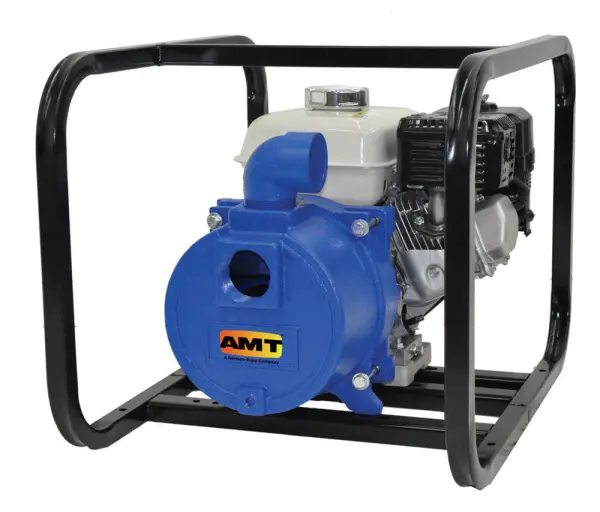

AMT® 3932-95 Self-Priming Trash Centrifugal Pump

Part Number: 3932-95
The actual product may vary from images shown
$1,369.50
QTY:


3932-95 DETAILS

AMT® 3932-95 Centrifugal Trash Pump.

AMT® Cast Iron Engine Driven Trash Pumps are designed for applications which require high flow efficiency, solids handling capability and abrasion resistance. This series of Pumps is also good for chemical spraying, handling and processing. These pumps are constructed of heavy duty CNC machined cast iron components featuring removable/replaceable cast iron volute and impeller. Simple four bolt clean out design permits easy removal of trash and debris without disconnecting hoses.

  • Viton o-ring and casing seal
  • Self-primes to 20 feet with built in check valve
  • Stainless steel shaft sleeve
  • 1" maximum solids size
  • Includes:
    • Heavy duty steel roll frame
    • Pipe nipples
    • Discharge elbow
    • Suction strainer included


Interchangeable with Grainger Part # 3P956


* AMT® 3932-95

3932-95 FEATURES

  • Cast Iron Construction with Cast Iron, Replaceable Volute/Wear plate & Impeller
  • Stainless Steel Shaft Sleeve
  • SiC/SiC Viton® Mechanical Seal with Viton® O-Ring & Casing Seal
  • Self-Primes to 20 Ft. with Built-In Viton® Check Valve
  • Maximum Solids Size: 1"
  • Steel Suction Strainer and Heavy Duty Steel Roll Frame Included
  • (2) NPT Pipe Nipples & 2" Street Elbow Included
  • 10" Semi-Pneumatic Wheel Kit Available (C402-90)

3932-95 SPECS

  • Pump Type: Self-Priming Centrifugal
  • Brand: AMT®
  • Shipping Weight LBS: 115
  • Shipping Length IN: 24
  • Main Material: Cast Iron
  • Shipping Height IN: 18.6
  • Engine Type: Honda GX160 OHV
  • SKU: AT393295SP
  • MPN: 3932-95
  • Fuel Tank Capacity: 3.28 qt
  • Customs Code: HTS Code 8413702015
    Schedule B Code 8413702015
    ECCN Code EAR99
  • Driver Type: Gasoline Engine
  • Shipping Width IN: 19.2
  • Outlet Size: 2
  • Inlet Size: 2
  • Elastomers: FKM
  • Outlet Connection Type: FNPT
  • Inlet Connection Type: FNPT
  • Max Solids Size: 1
  • Run Time: 120.00 min
  • Max FLow Rate: 185 GPM
  • Power: 5
  • Seal Material: Silicon Carbide/Silicon Carbide Mechanical Seal, FKM Elastomers
  • Max Discharge Pressure: 46.3
