AMT® 3899-97 Self-Priming Centrifugal Pump with Bearing Pedestal

Part Number: 3899-97

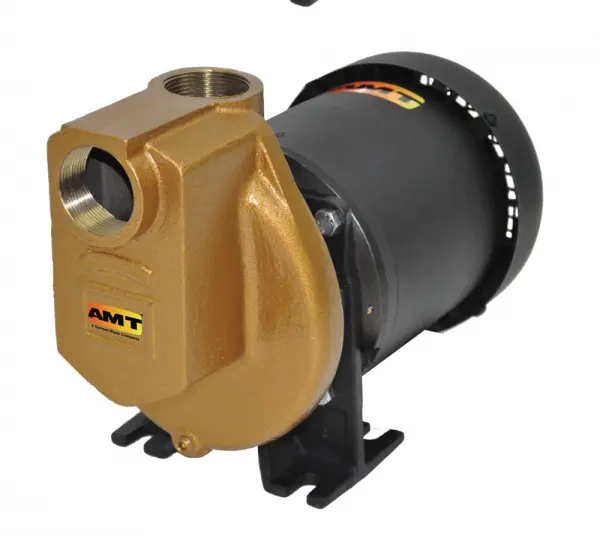

The actual product may vary from images shown
$1,086.00
QTY:


3899-97 DETAILS

AMT® 3899-97 Self-Priming Centrifugal Pedestal Pump.

AMT® self-priming centrifugal pumps are designed for a wide range of applications including chemical processes, waste water treatment and pumping agriculture fertilizers/fumigants. Pumps are self-priming to 6 feet and feature a dual volute design to reduce radial load on motor. Pumps are designed to handle liquids with specific gravities up to 1.3 and viscosities to 100 SSU. 1 1/2" NPT Suction and Discharge Ports.

This pedestal model features an epoxy coated bearing housing with 3/4" diameter stainless steel shaft with 3/16" keyway and sealed ball bearings.

Features:

  • Cast bronze construction
  • Stainless steel self-cleaning, semi-open impeller
  • Carbon/Ceramic seal with Viton® elastomers
  • Maximum working pressure: 75 PSI
  • Maximum temperature: 200 F
  • Self-Priming to 6 Ft.
This unit does NOT come with a motor/engine

Links to repair kits and optional equipment (where available) are located at the top and bottom of this page for your convenience.
* AMT® 3899-97

3899-97 FEATURES
  • Handle Liquids with Specific Gravities Up to 1.3 & Viscosities to 100 SSU
  • Cast Bronze Construction with 300 SS Series Self-Cleaning, Semi-open Impeller
  • Viton/SS Mechanical Seal with Viton® O-Ring
  • Self-Priming to 6 Ft
  • Dual Volute Design
  • Epoxy Coated Bearing Housing with 3/4" Diameter SS Shaft with 3/16" Keyway and Sealed Ball Bearings

3899-97 SPECS

  • Pump Type: Self-Priming Centrifugal
  • Brand: AMT®
  • Shipping Weight LBS: 34
  • Shipping Length IN: 13.4
  • Main Material: Bronze
  • Displacement per Stroke (gal):
  • Shipping Height IN: 9.5
  • SKU: AT389997SP
  • Engine Type:
  • MPN: 3899-97
  • Full Load Current:
  • Fuel Tank Capacity:
  • Customs Code: HTS Code 8413702022
    Schedule B Code 8413702022
    ECCN Code EAR99
  • Shipping Width IN: 6.5
  • Driver Type: Bearing Pedestal
  • Outlet Size: 1.5
  • Inlet Size: 1.5
  • Elastomers: FKM
  • Motor Frame:
  • Outlet Connection Type: FNPT
  • Model #:
  • Inlet Connection Type: FNPT
  • Max Solids Size:
  • Porting Position:
  • Max FLow Rate: 130 GPM
  • Power: 2
  • Run Time:
  • RPM: 3450
  • Seal Material: Carbon/Ceramic Mechanical Seal, FKM Elastomers
  • Max Discharge Pressure: 26.8
