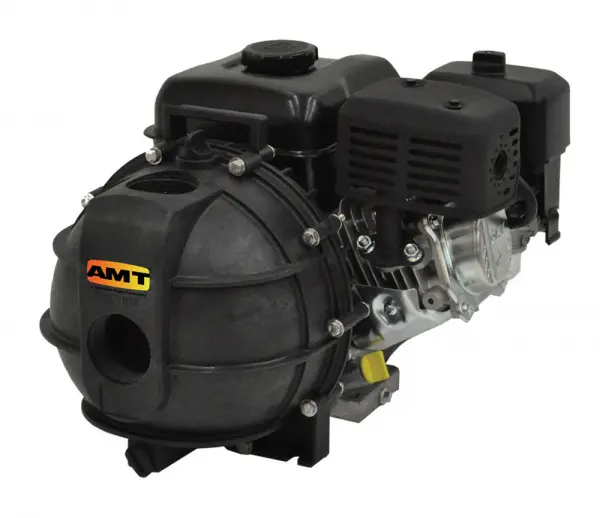

AMT® 382A-99 Self-Priming Dewatering Centrifugal Pump

Part Number: 382A-99
The actual product may vary from images shown
$687.00
QTY:


382A-99 DETAILS

AMT® 382A-99 Dewatering Centrifugal Pump.

The AMT® line of Engine Driven Dewatering Pump offers economy, durability, portability and performance all in one neat package. Ideal for general purpose dewatering, irrigation, spraying, washdown and agricultural applications. Built-in check valve enables constant self-priming to 20 feet. Pump constructed of corrosion resistant polypropylene components featuring removable/replaceable volute and impeller.

Features:

  • Thermoplastic construction
  • Carbon/Ceramic seal with Buna-N elastomers
  • Semi-open, clog resistant impeller
  • Self-primes to 20 ft with built-in check valve
  • Replaceble volute
  • 7/16" maximum solids handling capacity
  • Maximum temperature: 130 F
  • Maximum working pressure: 60 PSI
  • Delivers up to 48 PSI with a maximum of 190 GPM
  • Includes:
    • (2) NPT pipe nipples
    • Check Valve
    • Carrying handle
    • Fiber gasket casing seal
Links to repair kits and optional equipment (where available) are located at the top and bottom of this page for your convenience.

Interchangeable with Grainger Part # 5ZT34


* AMT® 382A-99

382A-99 FEATURES
  • Thermoplastic Construction for Extreme Light Weight and Portable
  • Self-Primes to 20 ft. with Built-In Check Valve
  • Carbon/Ceramic Buna-N Mechanical Seal with Fiber Gasket Casing Seal
  • Two (2) NPT Pipe Nipples Included
  • 7/16" Diameter Max Solid Size
  • 5 HP Honda GC160 Engine with 1.5 Hour Run Time (.47 G Fuel Tank)

382A-99 SPECS

  • Pump Type: Self-Priming Agricultural/Dewatering Centrifugal
  • Brand: AMT®
  • Shipping Weight LBS: 45
  • Shipping Length IN: 18.8
  • Main Material: Polypropylene
  • Displacement per Stroke (gal):
  • Shipping Height IN: 12.7
  • SKU: AT382A99SP
  • Engine Type: Honda GC160 OHC
  • MPN: 382A-99
  • Full Load Current:
  • Fuel Tank Capacity: 1.88 qt
  • Customs Code: HTS Code 8413702015
    Schedule B Code 8413702015
    ECCN Code EAR99
  • Shipping Width IN: 15.6
  • Driver Type: Gasoline Engine
  • Outlet Size: 2
  • Inlet Size: 2
  • Elastomers: Buna-N
  • Motor Frame:
  • Outlet Connection Type: FNPT
  • Model #:
  • Inlet Connection Type: FNPT
  • Max Solids Size: 0.44
  • Porting Position:
  • Max FLow Rate: 190 GPM
  • Power: 5
  • Run Time: 90.00 min
  • RPM:
  • Seal Material: Carbon/Ceramic Mechanical Seal, Buna -N Elastomers
  • Max Discharge Pressure: 50.6
