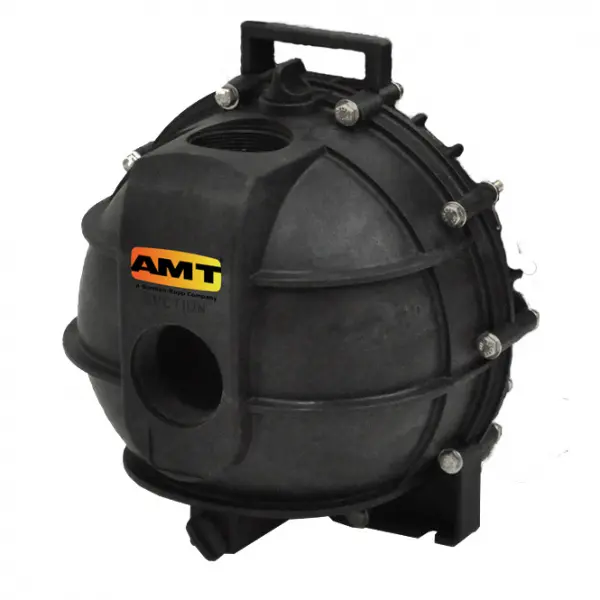

AMT® 3826-99 Self-Priming Solids Handling Centrifugal Pump with Bearing Pedestal

AMT® 3826-99 2" Self-Priming Dewatering/Solids Handling Pedestal Pump, 5 HP Minimum Required at 3600 RPM.

AMT® Self-Priming Solids Handling Pedestal Pumps are designed for direct or belt drive with either an electric motor or a gas/diesel engine. Thermoplastic construction. This unit features 1/4" solids handling construction and is fitted with a cast iron bearing housing, which contains two precision sealed ball bearings. Easy clean-out design by removing casing bolts permits removal of debris without disconnecting hoses.

Features:

• Thermoplastic construction
• Carbon/Ceramic seal with Buna-N elastomers
• Buna-N check valve and o-rings
• Self-primes to 20 Ft. with built-in check valve
• 2" NPT suction & discharge ports
• Maximum working pressure: 60 PSI
• Maximum temperature: 130 F
• 1/4" Diameter solids handling capability
• Heavy duty cast iron bearing housing containing (2) precision sealed ball bearings
• 3/4" Diameter CNC Machined Shaft with 1-3/8" x 3/16" x 3/32" Keyway

This unit does NOT come with a motor/engine

Links to repair kits and optional equipment (where available) are located at the top and bottom of this page for your convenience.
