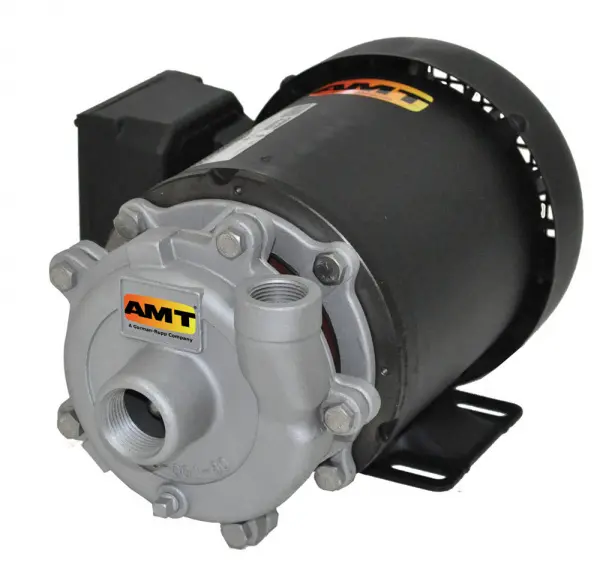

AMT® 368C-95 Straight Centrifugal Pump

Part Number: 368C-95
The actual product may vary from images shown
$474.75
QTY:


368C-95 DETAILS

AMT® 368C-95 Straight Centrifugal Pump.

AMT® solids handling end suction centrifugal pumps are designed for continuous-duty low pressure OEM, industrial/commercial and general service applications including circulation, chemical processing, liquid transfer, dirty water and cooling. These durable and compact pumps are available in a variety of construction and seal materials to meet your specifications. Pull-from-rear design for easy service without disturbing any piping. Self-cleaning, semi-open, stainless steel impeller prevents clogging and handles solids of 1/8" diameter. Pumps are not self-priming and require flooded suction/positive suction pressure.

Features

  • Cast iron construction
  • Stainless steel, self-cleaning, semi-open impeller
  • Carbon/Ceramic seal with Viton® elastomers
  • SiC/SiC seal with Viton® elastomers available
  • Discharge port rotates in 90 degree increments
  • Front drain plug
  • NEMA 56J TEFC base mounted motor
  • Stainless steel motor shaft and hardware
  • Maximum working pressure: 75 PSI
  • Maximum temperature: 180 F

Links to repair kits and optional equipment (where available) are located at the top and bottom of this page for your convenience.

Hazardous Duty/Xplosion Proof motors available from stock ranging from 1 to 10 HP.
* AMT® 368C-95

368C-95 FEATURES
  • Cast Iron Construction with Stainless Steel, Self-Cleaning Impeller
  • Pull-From-Rear Design for Easy Service Without Disturbing any Piping
  • Pump is Close Coupled to TEFC Motor
  • Carbon/Ceramic Seal with Buna-N Elastomers and O-Ring
  • Optional Factory Installed SiC/SiC Seal with Viton® Elastomers and Viton® O-Ring (368X-301-VS)
  • Maximum Solids Size: 1/8"
  • Discharge Rotates in 90 Degree Increments
  • Single Front Drain Plug
  • Pump is NOT self-priming and requires a flooded suction/positive suction pressure.

368C-95 SPECS

  • Pump Type: Straight Centrifugal
  • Brand: AMT®
  • Shipping Weight LBS: 31
  • Shipping Length IN: 12.4
  • Main Material: Cast Iron
  • Displacement per Stroke (gal):
  • Shipping Height IN: 7.2
  • Engine Type:
  • SKU: AT368C95SP
  • MPN: 368C-95
  • Full Load Current:
  • Fuel Tank Capacity:
  • Customs Code: HTS Code 8413702005
    Schedule B Code 8413702005
    ECCN Code EAR99
  • Driver Type: Electric Motor
  • Shipping Width IN: 8.3
  • Outlet Size: 0.5
  • Inlet Size: 0.75
  • Elastomers: Buna-N
  • Model #:
  • Motor Frame: 56J
  • Outlet Connection Type: FNPT
  • Porting Position:
  • Inlet Connection Type: FNPT
  • Max Solids Size: 0.125
  • Run Time:
  • Max FLow Rate: 38 GPM
  • Power: 0.5
  • RPM: 3450
  • Seal Material: Carbon/Ceramic Mechanical Seal, Buna -N Elastomers
  • Max Discharge Pressure: 24.7
