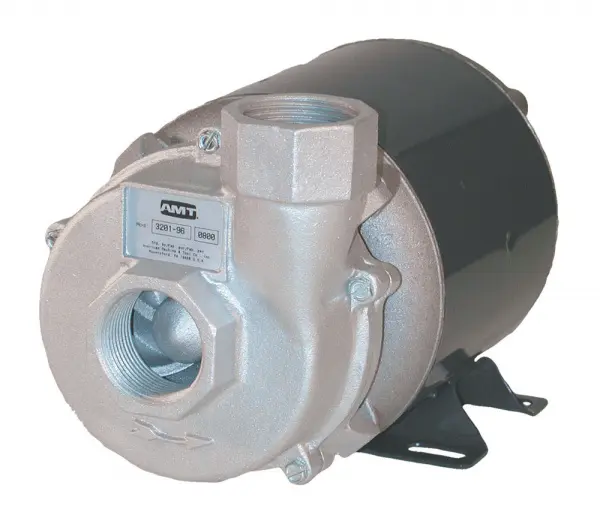

AMT® 3201-96 General Purpose Laundry Tray Centrifugal Pump

AMT® 3201-96 1 1/4" General Purpose Laundry Tray Pump.

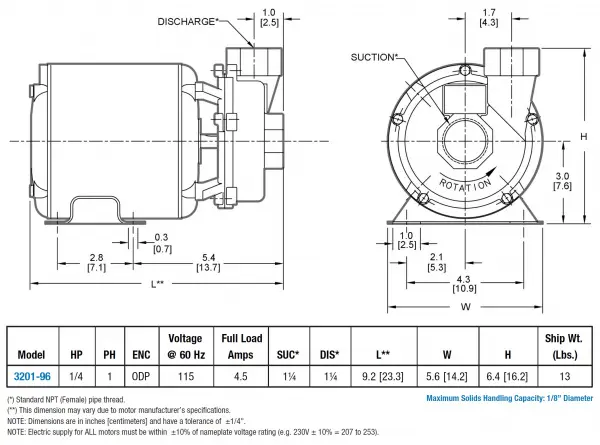

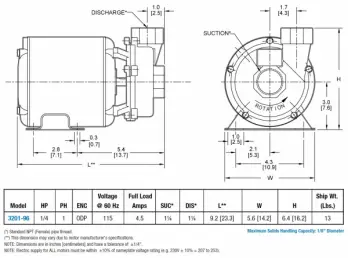

The AMT® Laundry Tray pump is a single stage, multi-vane open impeller unit. it is designed as a laundry tray" pump, but can be used for most gravity fed general service pumping applications. The 1/8" diameter solids handling open impeller design makes it particularly adaptable to dirty, as well as clean liquids and is inherently resistant to clogging. The pump is constructed of cast aluminum and features 1 1/4" NPT suction and discharge ports. Pump is powered by a 1725 RPM, 115 VAC, 1/4 HP, 48Z frame, continuous duty motor. Pump is not self-priming and requires flooded suction/positive suction pressure.

Features:

• Cast aluminumconstruction
• Carbon/Ceramic seal with Buna-N elastomers and o-ring
• Self-cleaning, semi-open impeller
• Maximum working pressure: 50 PSI
• Maximum temperature: 180 F
• Maximum flow: 24 GPM
• Maximum head height: 11 Ft. (5.2 PSI)

Interchangeable with Grainger Part # 1P795, 5PXX9

* AMT® 3201-96
