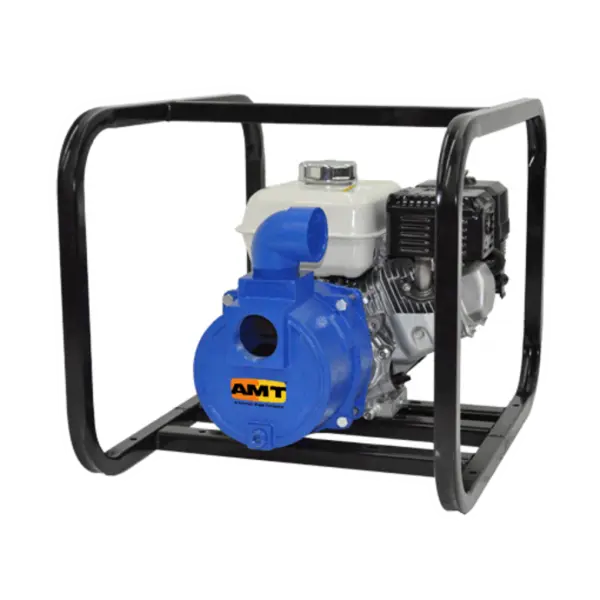

AMT® 316F-Z5 2" NPT Engine Driven Dredging Pump

Part Number: 316F-Z5
The actual product may vary from images shown
$6,054.00
QTY:


316F-Z5 DETAILS

AMT® 316F-Z5 2" NPT Engine Driven Dredging Pump

AMT® Engine Driven Dredging Pump is designed for pumping sea water and fresh water containing up to 25% sand, debris and other abrasive particles. This unit can be used for other marine applications including dredging, pile driving, pier maintenance, emergency bilging and wash down. This pump is constructed of wear resistant high chromium stainless steel internal components that are designed to last for over 500 hours of service with regular maintenance of rinsing pump after each use. The high chromium stainless steel components are investment cast and CNC machined for maximum efficiency, performance and quality. Dual volute design reduces radial load on engine. The 4-bolt casing design and removable type volute offers simple maintenance and fast cleanout of the pump.

316F-Z5 SPECS

  • Pump Type: Self-Priming Dredging Centrifugal
  • Brand: AMT®
  • Shipping Weight LBS: 200
  • Shipping Length IN: 31
  • Main Material: Cast Iron
  • Shipping Height IN: 23.6
  • Engine Type: Hatz Diesel 1B30
  • SKU: AT316FZ5SP
  • MPN: 316F-Z5
  • Fuel Tank Capacity: 5.28 qt
  • Customs Code: Schedule B Code 8413702022
    ECCN Code EAR99
  • Shipping Width IN: 22.5
  • Outlet Size: 2
  • Inlet Size: 2
  • Outlet Connection Type: FNPT
  • Inlet Connection Type: FNPT
  • Max Solids Size: 0.5
  • Run Time: 162.00 min
  • Max FLow Rate: 173 GPM
  • Power: 7
  • Seal Material: Viton® S/C
