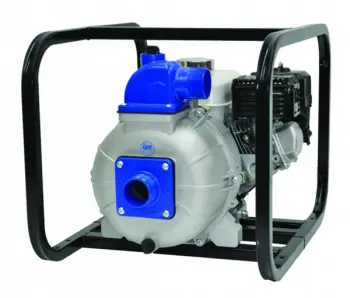

2S5XHR Self-Priming Trash Pump

IPT® portable high volume, self-priming centrifugal trash pumps come standard with a cast iron impeller to resist abrasion and one tool serviceability for easy clean-out. Silicon Carbide mechanical seal with graphite impregnated seat and Viton® Elastomers. Removable, heavy duty cast iron flanges with male NPT threads that rotate in 90 degree increments. Handles up to 1" solids. Pedestal versions (bare shaft pump) for long coupling to electric motors are also available.

Features:

• Self-Primes to 26 ft with built in check valve
• Handles up to 1" Solids
• SiC/Car Seal w/ Viton® Elastomers
• EPDM/EPR O-Rings
• Heavy duty steel roll frame included
• Aluminum housing
• Cast iron impeller and wear parts
• Built-in check valve
• Suction strainer
• Easy access fill plug on discharge port
• One Tool Serviceability- Tool Included
• Vibration Dampening Feet

Optional Equipment:

Viton® O-Ring and Check Valve Installed at Factory (Seal not included- pump already equiped with SiC/Car Seal
Wheel Kit
See Optional Equipment Links at the Top and Bottom of the Page!
* IPT® 2S5XHR
