Home / AMT® Pumps / 2P5XHR High Pressure Self-Priming Pump

2P5XHR High Pressure Self-Priming Pump

Part Number: 2P5XHR
The actual product may vary from images shown
$1,316.25
QTY:


2P5XHR DETAILS

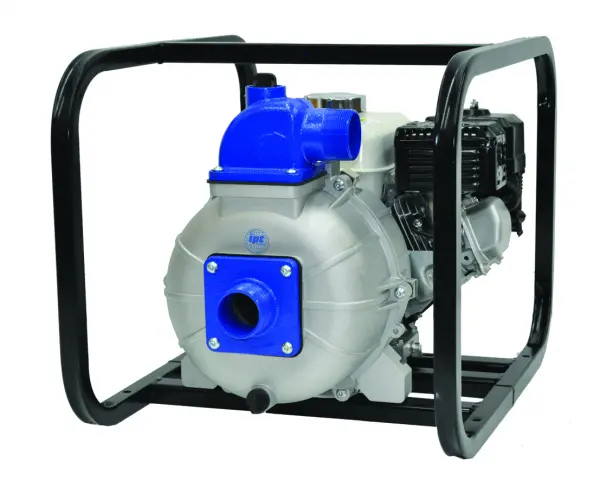

IPT® 2P5XHR Portable High Pressure Pump.

Pump applications include fire protection and irrigation. Pump features high efficiency closed cast aluminum impeller. Comes equipped with Carbon/Ceramic seal with EPDM/EPR elastomers and o-rings. Diecast aluminum construction with high efficiency closed cast aluminum impeller, cast iron volute and steel roll cage.

Features:

  • Diecast aluminum casing
  • Aluminum closed, high-efficiency impeller
  • Carbon/Ceramic seal with EPDM/EPR elastomers
  • EPDM/EPR O-Rings & Gaskets
  • Self-primes to 26 ft with built-in check valve
  • Large pump casing increases capacity
  • Removable/replaceable Suction & discharge flanges
    • Discharge port rotates in 90 degree increments
  • One tool serviceability (tool included)
  • Maximum temperature: 180 F
  • Includes strainer, rubber foot mounting and roll cage
Links to repair kits and optional equipment (where available) are located at the top and bottom of this page for your convenience.

Optional Roll Frame Wheel Kit Available.
* IPT® 2P5XHR

2P5XHR FEATURES
  • Carbon/Ceramic/EPDM Mechanical Seal
  • Optional Factory Installed SiC/SiC Viton® Mechanical Seal and Elastomers (2P5X-300-VS)
  • One Tool Serviceability, Tool Included
  • Removable Male NPT Suction & Discharge Ports Rotate in 90 Degree Increments
  • Optional NPT to NH/NST Male Thread Adapter Nipples Available (C231-90)
  • Self-Primes to 26 Ft. with Built-In Check Valve
  • Rubber Foot Mounting, Strainer and Heavy Duty Steel Roll Frame Included
  • High Pressure Hose Kit Available (055-338) and 10" Semi-Pneumatic Wheel Kit Available (C402-90)
  • Honda GX160 Engine

2P5XHR SPECS

  • Pump Type: Self-Priming High Pressure Centrifugal
  • Brand: IPT®
  • Shipping Weight LBS: 90
  • Shipping Length IN: 24
  • Main Material: Alum Diecast
  • Displacement per Stroke (gal):
  • Shipping Height IN: 18.6
  • Engine Type: Honda GX160 OHV
  • SKU: AT2P5XHRSP
  • MPN: 2P5XHR
  • Full Load Current:
  • Fuel Tank Capacity: 3.28 qt
  • Customs Code: HTS Code 8413702015
    Schedule B Code 8413702015
    ECCN Code EAR99
  • Driver Type: Gasoline Engine
  • Shipping Width IN: 19.2
  • Outlet Size: 2
  • Inlet Size: 2
  • Elastomers: EPDM/EPR
  • Model #:
  • Motor Frame:
  • Outlet Connection Type: MNPT
  • Porting Position:
  • Inlet Connection Type: MNPT
  • Max Solids Size:
  • Run Time: 168.00 min
  • Max FLow Rate: 120 GPM
  • Power: 5
  • RPM:
  • Seal Material: Carbon/Ceramic Mechanical Seal, EPDM/EPR Elastomers
  • Max Discharge Pressure: 91.8
