AMT® 285J-95 Self-Priming Centrifugal Pump

Part Number: 285J-95
The actual product may vary from images shown
$659.25
QTY:


285J-95 DETAILS

AMT® 285J-95 Self-Priming Centrifugal Pump.

The AMT® self-priming cast iron centrifugal pumps are designed for circulating, boosting, washdown, liquid transfer and dewatering applications. Dual volute design reduces radial load on motor. The centerline discharge feature is specifically designed to prevent vapor binding and makes for convenient piping connections. All models are fitted with self-cleaning, semi-open impeller. The units will self-prime to 20 feet. Mounting base features 7/16" mounting holes, which are 6" OC (on center). Built-In carrying handle offers portability.

Features:

  • Cast iron construction
  • Carbon/Ceramic seal with Buna-N elastomers and o-ring
  • Optional seals with Viton® elastomers and o-rings available
    • Available with Cer/Car faces or SiC/SiC faces
  • Self-cleaning, semi-open impeller
  • Maximum working pressure: 75 PSI
  • Maximum temperature: 180 PSI
  • Dual volute design

Links to repair kits and optional equipment (where available) are located at the top and bottom of this page for your convenience.

Hazardous Duty/Xplosion Proof motors available from stock ranging from 1 to 10 HP.
* AMT® 285J-95

285J-95 FEATURES

  • Centerline Discharge Feature is Specifically Designed to Prevent Vapor Binding and Makes for Convenient Piping Connections
  • Cast Iron Construction with Self-Cleaning, Semi-Open Impeller
  • Carbon/Ceramic Buna-N Seal & O-Ring
  • Optional Factory Installed Type Six Carbon/Ceramic Viton® Seal and O-Ring (285X-301-V0)
  • Dual Volute Design Reduces Radial Load on Motor
  • Self-Primes to 20 Ft.
  • 1 HP, TEFC (Totally Enclosed, Drip Proof), Three Phase, 230/460 VAC/60 Hz, 56J Frame Motor

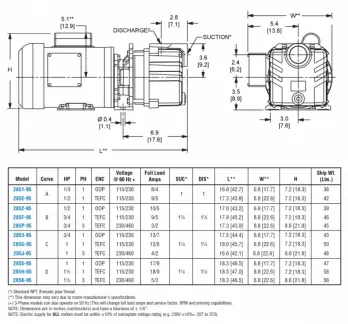

285J-95 SPECS

  • Pump Type: Self-Priming Centrifugal
  • Brand: AMT®
  • Shipping Weight LBS: 48
  • Shipping Length IN: 16.6
  • Main Material: Cast Iron
  • Shipping Height IN: 8.6
  • Displacement per Stroke (gal):
  • SKU: AT285J95SP
  • Engine Type:
  • MPN: 285J-95
  • Full Load Current:
  • Fuel Tank Capacity:
  • Customs Code: HTS Code 8413702005
    Schedule B Code 8413702005
    ECCN Code EAR99
  • Shipping Width IN: 8.8
  • Driver Type: Electric Motor
  • Outlet Size: 1.25
  • Inlet Size: 1.25
  • Elastomers: Buna-N
  • Motor Frame: 56J
  • Outlet Connection Type: FNPT
  • Model #:
  • Inlet Connection Type: FNPT
  • Max Solids Size:
  • Porting Position:
  • Max FLow Rate: 78 GPM
  • Power: 1
  • Run Time:
  • RPM: 3450
  • Seal Material: Carbon/Ceramic Mechanical Seal, Buna -N Elastomers
  • Max Discharge Pressure: 28.1
